Georgia Gun Club Opens First 100-Yard Indoor Rifle Range in Georgia

Georgia Gun Cub hopes to change the way people in the surrounding area think about indoor shooting ranges. Building the first 100-yard indoor rifle range in Georgia seems like a good start, but they aren’t stopping there. Adopting the tagline, “You’ve never shot like this before,” the goal is to give customers an unparalleled experience when shooting at the club. Georgia Gun Club is doing this through high-quality equipment and taking the country club approach to the shooting range business – an approach that is becoming a widely accepted concept across the country.

Georgia Gun Club’s nearly 40,000 square foot facility includes an indoor shooting range, member’s lounge, classrooms, simulation theater gunclub190-3324986480-Oand retail space. The range is outfitted with Action Target equipment and has a total of 28 lanes. There are eight 100-yard lanes reserved specifically for rifle use and the other 20 lanes are 25-yards long. The range is not only for the shooting novice or enthusiast, but is also designed for local Law Enforcement agencies that need a place to complete training and certification. Action Target retrievers, turning targets and full panel clear ballistic shooting stalls provide a quality experience for each shooter who visits the club.

The Action Target Total Containment Trap’s unique technology collects bullet rounds while simultaneously reducing ricochet and lead dust build up. Overhead safety baffles are in place to catch errant rounds and provide an added level of noise abatement and safety. The integrated ventilation system also ensures the air is free of lead contaminants and maintains a comfortable temperature inside the range.

The club offers several training courses including personal protection, home firearm safety and basic pistol, rifle and shotgun courses. ThereGGC portico sign 2 is a full-time gunsmith available to help customers and nationally certified instructors who are also Range Safety Officers.

A theater room with video enhanced simulator training and an impressive retail space only add to the overall experience of the club. Although the space is full of amenities, Georgia Gun Club stresses their overall goal is a safe environment.

“I am pleased to have designed and led the effort of bringing a safe and family friendly shooting facility to the Atlanta metropolitan area,” said Verne Fowler, Managing Partner. Fowler continued saying, “We have worked hard to ensure that this shooting facility is unmatched in its capabilities and overall experience for the customer.”

THINKING ABOUT BUILDING A SHOOTING RANGE?

Building a shooting range can be an overwhelming process. Your time and resources deserve a partner who will listen to your ideas and turn your dreams and plans into a successful, thriving business. If you are considering building a range, talk to the Action Target Range Consultant in your region, and he will be happy to help you find the right equipment to fit your needs and budget. You can also use our Request a Quote form to get started on your range project today.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.



The Gun Vault

Gun Vault Exterior BestThe Gun Vault, a 25,000 square foot facility based in the suburbs of Salt Lake City, says it sets the standard for what Utah residents can expect in an indoor shooting range. The Gun Vault owners designed their range to be not only one of the largest in Utah, but one of the most upscale and high-end, providing a quality experience for anyone who visits the range. The Gun Vault was created with the idea to provide Utah residents a great shooting environment no matter a shooter’s individual skill level.



Gun Vault Lobby 3The facility hosts a 7,000 sq. ft. retail space. The exposed rock architecture and high ceilings with skylights give the area an open atmosphere with plenty of light. Friendly and knowledgeable staff members are on hand to answer questions and provide information. One of the goals of The Gun Vault is to create a non-threatening environment where anyone from the first time to professional shooter can come and enjoy an indoor shooting experience.the idea to provide Utah residents a great shooting environment no matter a shooter’s individual skill level.



Gun Vault Stalls 2The shooting range features 15 lanes at a 25-yard distance with a viewing area behind the range. The range features Action Target equipment including a Total Containment Trap, overhead safety baffles, wall baffle system, target retrieval system, shooting stalls, and sound abatement material to help contain noise within the range. A Carey’s ventilation system provides top air quality and protects consumers from lead and other harmful air contaminants. Regarding the range equipment the staff says, “We have chosen the best in the industry to make sure our customers have the best experience possible when they come see us.”

Gun Vault Members Lounge 2

But The Gun Vault doesn’t stop with an impressive retail area and quality range equipment. It also houses two simulators, classrooms and a lounge. The simulators provide an opportunity for training, target shooting, and just a chance to become familiar with a gun in a non-threatening environment. The simulators feature a variety of conceal carry, target and home defense scenarios. The Gun Vault also offers classes ranging from basic handgun to CFP to private seminars.



The lounge area tops off the facility with leather couches, poker tables, pool tables and six large televisions. Strategically placed skylights throughout the lounge add natural light and an inviting atmosphere. The lounge, simulators, and classrooms are all available for rent to the general public. Corporate events, training sessions, or company parties can all be hosted at The Gun Vault.

The Gun Vault offers Utah what more and more ranges are trying to offer to shooting sports consumers across the nation: a premier environment where anyone can come and enjoy a high-quality shooting experience.

Thinking about Building a Shooting Range?

Building a shooting range can be an overwhelming process. Your time and resources deserve a partner who will listen to your ideas and turn your dreams and plans into a successful, thriving business. If you are considering building a range, talk to the Action Target Range Consultant in your region, and he will be happy to help you find the right equipment to fit your needs and budget. You can also use our Request a Quote form to get started on your range project today.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

Frisco Gun Club Range Highlight

When he started plans for Frisco Gun Club, owner Christian Putman wanted to create the Nieman Marcus or Barney’s of shooting ranges. Now that dream has become a reality as Frisco Gun Club is not only one of the largest indoor ranges in the nation, but one of the most luxurious. The sheer size alone is impressive: a 43,000 square foot facility with 40 shooting lanes, 7,000 square feet of retail space, and a 100-person training classroom. But the luxury factor is what sets Frisco Gun Club apart from the rest.



About the Range

The range is designed to challenge each individual shooter’s skill level. The range includes 40 shooting lanes. There are 36 25-yard lanes, with six of these reserved _MG_5995exclusively for VIP Club members, and four 100-yard rifle lanes. Each shooting stall is divided by one-inch thick bulletproof glass, and the stalls are nine inches wider than standard shooting stalls. Each person can determine his or her difficulty level with hands-on target operator consoles and individual control screens. Twenty four of the lanes can be viewed through bulletproof observation windows so people can watch their friends and family outside the range.

The range equipment provides all customers and club employees a safe and clean environment. Action Target’s unique Total Containment Trap is a bullet trap specifically designed to handle a large volume of rounds while depositing all the lead safely into a single 55-gallon barrel using the Screw Conveyor collection method. The ventilation system is also top-of-the-line, meeting and exceeding NIOSH and EPA regulations. With the best in equipment, club employees can spend their time on what’s most important: servicing their customers.



Training & Classes

Training and safety is a large part of the club’s focus. The club hosts a 100-person training classroom, and several classes are offered including CHL, Firearms Safety, Introduction to Handguns, and a variety of NRA classes. Ladies Nights are a regular occurrence, and the range is also available for events and parties. A full-time gunsmith is employed at the club, and common and custom gunsmith services are available six days a week.



Membership

Frisco Gun Club is open to the public, but it caters especially to its members. The club had 2,300 members before it even opened its doors in early December 2013. VIP-Lounge-1200There are three levels of membership available; guests can sign up for a standard, platinum or VIP membership. Family memberships are also available. Benefits vary depending on the level, but all members enjoy a 10% discount on accessories, complimentary eye and ear protection, a discount on range fees, and much more.

The VIP Club goes a step above what customers are typically accustomed to with a gun club membership. Membership in the VIP club includes amenities such as valet parking, free gun cleanings and no range fees. VIP members also enjoy a private entrance after hours and full-time attendant, up-scale dining and drinks, cigar room, 24/7 biometric range access, and private storage for their firearms in the on-site gun vault. The VIP lounge with a fireplace, leather seating, and Wi-Fi is just one more way Frisco Gun Club provides this tier of membership a premier experience.



From their top-of-the-line range equipment to the member benefits and classes offered, Frisco Gun Club strives to provide the best experience for any customer that enters their doors.



Thinking about Building a Shooting Range?

Building a shooting range can be an overwhelming process. Your time and resources deserve a partner who will listen to your ideas and turn your dreams and plans into a successful, thriving business. If you are considering building a range, talk to the Action Target Range Consultant in your region, and he will be happy to help you find the right equipment to fit your needs and budget. You can also use our Request a Quote form to get started on your range project today.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.



Illinois Shooting Range Braces for New Concealed Carry Law with Huge Upgrade

As Illinois becomes the 50th state to allow the concealed carry of firearms, one shooting range a half hour out of Chicago is preparing for the influx of new shooters and turning heads in the process.

GAT Guns of East Dundee, Ill., recently added a monumental 39 new indoor lanes to its existing 24 making it one of the largest indoor shooting ranges in the country and the go-to destination for shooters near and far.GAT Guns 3

The new ranges, which were designed and installed by Action Target, include 50-yard and 75-yard bays with 14 lanes each as well as a 50-foot long tactical training range with 11 lanes. There is also a large classroom to accommodate the thousands of concealed carry permit applicants expected to come through the doors when the new law goes into effect on January 5.

“We foresaw a need for a full service training facility in the area,” GAT Guns General Manager Randy Potter said. “There’s nobody else around here that can take care of customers from A to Z as completely as we can. We have the training classes, the firearms inventory, the accessories, and now we have one of the most advanced firearms training facilities in the country.”

With the new Illinois concealed carry law requiring 16 hours of training (including live fire training on a shooting range), GAT Guns provides the ideal venue.

GAT Guns 4

The new shooting bays include steel funnel bullet traps which safely collect and contain lead debris, bullet proof shooting stalls, an advanced air filtration system and Mancom target retrievers that allow for complete control over target distance, lighting effects and 360 degree random edging from an LCD control screen in every booth.

“Customers are blown away by the quality of the ranges,” Potter said. “The technology on our ranges allows shooters to control every aspect of their training. It’s an entirely new shooting experience.”

GAT Guns, which was founded in 1979, is already known as the Illinois headquarters of all things firearms with more than 6,000 guns in stock on any given day and 2,500 unique pieces on display.

“We consistently have folks from 150 miles south of here to the Wisconsin border and even as far west as the Mississippi River,” Potter said. “I attribute that to us being as unique as we are in size and scope as well as our commitment to professional customer service.”

GAT Guns 2

GAT Guns originally began in nearby Hanover Park and moved to the current location in 1989 where owner Greg A. Tropino (and thus the acronym “GAT”) bought an old restaurant and retrofitted it into the two-story gun supercenter it is today.

“Greg’s told me in the past that when he originally bought the building, he had no idea what he was going to put upstairs in the original footprint,” Potter said. “We’ve outgrown that by 10 times now.”

With 63 total lanes and shooting bays located on both floors, GAT Guns has quickly become one of the most talked about ranges in the country. It’s even attracted the attention of R. Lee “The Gunny” Ermey from Glock who spent a day there in May to promote the range and sign autographs.

“We had over 1,200 people wait to meet The Gunny that day he was here. It was a very fun event,” Potter said.

GAT Guns 1

Even more than entertainment and retail, however, the mission of GAT Guns is to provide a central location for firearms education and quality training.

Training courses provided at the range currently include NRA First Steps, women only classes taught by women instructors, five phases of tactical pistol, five phases of tactical carbine, introductory handgun, practical holster and soon, Illinois concealed carry classes.

The new shooting bays recently opened up to the public and are also available for law enforcement qualification as well.

The Firearm Blog Reviews Nashville Armory

Nashville Armory 1
Nashville Armory
Credit: The Firearm Blog

Writer Alex C. of The Firearm Blog, one of the most popular gun related blogs in the world, recently took an afternoon to check out Nashville Armory, Tennessee’s newest shooting range installment. Nashville Armory has only been open for a few short months but is already making a huge splash in the firearms community because of its friendly environment and unmatched range technology. The 15,000-square-foot facility boasts a huge inventory of guns, ammo, shooting accessories, and even a shooters’ lounge where customers can grab a snack and a drink. Besides the retail and amenities, however, Nashville Armory’s claim to fame is its advanced indoor shooting range. The indoor range features two 75-foot bays with eight lanes each, a Total Containment Trap from Action Target, bulletproof glass shooting stalls, wireless target retrievers from Mancom (a subsidiary of Action Target), and 75-cubic-feet a minute ventilation provided by Carey’s Small Arms Range Ventilation.

Here is an excerpt from Alex C.’s review:

Nashville Armory 2
Range owner Gary Semanchik
Credit: The Firearm Blog

Over the course of my life, I have probably waddled into no fewer than twenty or so indoor gun ranges. I love a quick visit to an indoor range to test a few pistols, have a short bit of fun, and get out quickly because the facility is usually either too hot or cold (depending on time of year), filled with lead particles and spent powder in the air that seems to linger forever, or be so dark and dank that at longer ranges you can barely see the holes you punch in the target. I am proud to say that on the advice of a friend of mine I got to check out what I believe may well be the finest gun range I have ever set foot inside. On Monday, May 6th I hopped on a plane and flew from Dallas to Nashville to check out this facility that I had only seen a few photos of hoping that it would be all it was cracked up to be. Let me tell you that without a doubt, it was.

Gary is the owner of Nashville Armory, but you wouldn’t know it if you were an unassuming patron. You see, Gary says that he likes to meet all of his customers at the door with a smile taking to the Walmart-greeter method (his words, not mine), and immediately you feel welcome. This stands in contrast to some other gun shops/ranges where the staff makes you feel privileged for being allowed to patronize their establishment.

Nashville Armory 3
Employees pose with their favorite guns
Credit: The Firearm Blog

Now what makes Nashville Armory different you might ask? Well, I asked the very same question to Gary and he said simply this: “I wanted to set out and build the Apple Store of gun ranges; A one stop shop for firearms, equipment, classes, and training that would be family friendly and inviting”. Now that is a bold statement, but Gary has made it work and after the tour it is easy to understand how.

Read the full review on The Firearm Blog.

New Firearms Retailer Provides an Indoor Shooting Range for an Area Long Neglected

Red Dot Firearms of Layton, Utah, joins the short list of gun ranges in Davis CountyRed Dot Firearms 21

PROVO, Utah – May 22, 2013 – Davis County, Utah, recently welcomed a new kind of business to one of its largest shopping districts. Now you can get all of your grocery shopping done and hit the indoor shooting range all in the same place.

Red Dot Firearms, located just off I-15 exit 331 in Layton, recently opened its retail gun store and a 25 yard indoor shooting range capable of handling both handgun and rifle rounds including .5o BMG.

“We are the only retail firearms store in the area besides some of the big box stores, and we were the first place ever to apply for an indoor range license in the county,” owner Denny Wanlass said. “We felt like it was time people in the area had another option.”

According to Wanlass, many shooters in Utah have started moving their weekend shooting ventures away from public lands due to wildfires and other concerns, which means a higher demand for indoor ranges like Red Dot Firearms.

Red Dot Firearms 02
The ventilation system blows refrigerated air from the rear of the range to the bullet trap where it is filtered to prevent shooters from being exposed to hazardous lead dust.

“A lot of people just drive out to the desert to shoot, but last summer, several wildfires were blamed on target shooting. Whether true or not, it’s still driving many shooters away from the wilderness areas and indoors,” Wanlass said. “That combined with the closures of public land and the increase in gas prices make our indoor range the perfect alternative.”

Shooters transitioning from the outdoors also get the added benefit of a climate controlled environment and a ventilation system installed by Carey’s Small Arms Range Systems that exceeds NIOSH, EPA and OSHA standards.

“We wanted a good ventilation system because we take our customers’ health very seriously,” Wanlass said. “Just about every person who has come out of there has said, ‘I love being in a range where I can breathe!’”

Fellow Utah business Action Target was contracted to install the range equipment at Red Dot Firearms including a 48-foot wide steel funnel bullet trap, armor steel ceiling and wall baffles to prevent rounds from escaping, and shooting stalls capable of stopping rifle rounds from point blank range.

Red Dot Firearms 01
The Total Containment Trap is capable of handling handgun and rifle rounds including .50 BMG.

“Throughout the course of our research, it was clear that there really isn’t anyone else besides Action Target that is worth using,” Wanlass said. “The equipment on our range is second to none, and that means our customers can shoot with complete confidence that their safety is never going to be jeopardized.”

Red Dot Firearms is now open Monday through Friday from 10 a.m. to 8 p.m. and Saturday from 10 a.m. to 6 p.m. Classes in concealed carry, personal defense, hunter’s safety and more will be held regularly.

Action Target Builds its First Shooting Range in South America

The PCERJ range in Rio de Janeiro, Brazil, marks a milestone for Action Target’s growing international program

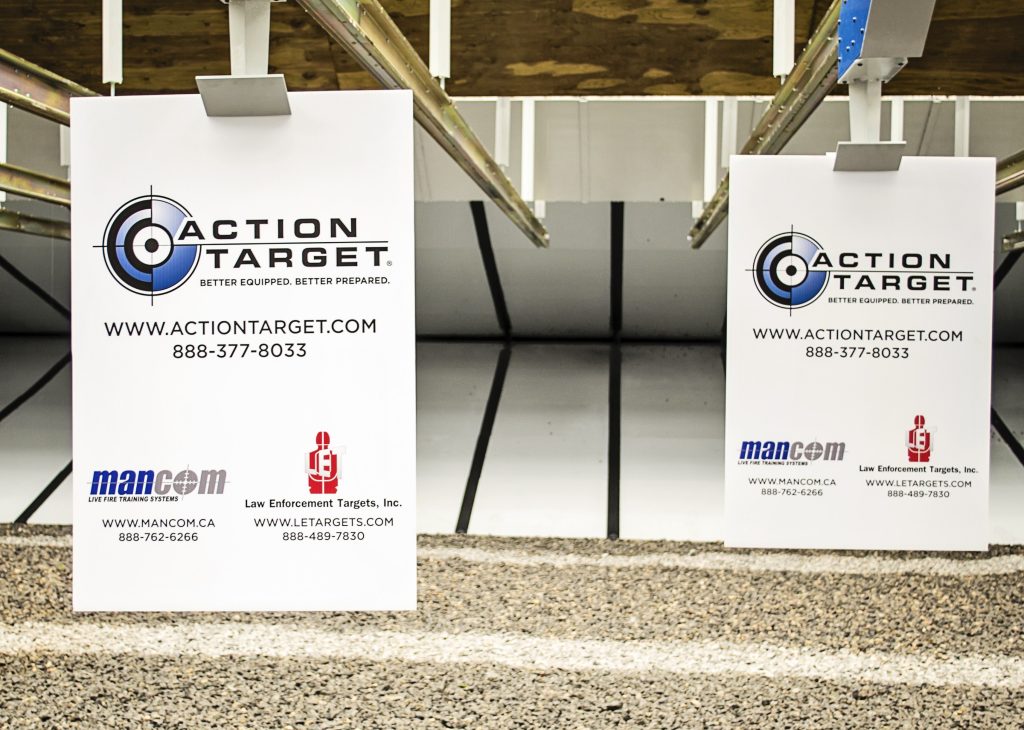

PCERJ 3
Action Target’s subsidiaries Mancom and Law Enforcement Targets provided equipment and targets for the new PCERJ range.

PROVO, Utah – April 9, 2013 – Action Target recently installed a new shooting range in Brazil for the State Civil Police of Rio de Janeiro (PCERJ). This is the first range built by Action Target in South America and marks a milestone for the company as it continues to branch into international markets.

“Opening the doors to South America was a big step for us,” Action Target’s Director of International Business Development Adam White said. “I think the Brazilian government understands training facilities of this kind are essential for progressive, effective training, and we hope to continue to work with them in the future.”

The new range was purchased by the PCERJ in a push to increase training standards for state and local law enforcement, but will also support training for special operations units from other states around Brazil as well. It features an open air 11-lane shooting range with user-friendly target retrieval systems from Mancom and a nine-room shoot house facility. To ensure bullet containment, the new range also includes a steel funnel bullet trap and safety baffles which provide ballistic protection for the shooting area.

PCERJ 1
The range’s Total Containment Trap and safety baffles ensure that not one round will be able to escape.

“There is no roof on the range to allow for natural ventilation, but the safety baffles we installed also make sure no rounds have the chance to escape,” White said.

One aspect of the range that is especially important to the Brazilian government is its effect on the environment. The PCERJ range utilizes technology from Action Target to ensure lead dust and debris are safely contained and collected for recycling.

As a bullet strikes the armor steel plate of the Total Containment Trap (Action Target’s patented steel funnel bullet trap), it is forced through the small horizontal opening in the middle of the funnel.

Once it has passed through the opening, the bullet enters the deceleration chamber where it spins until it loses energy. The bullet then falls into a trough where it is funneled into one of many plastic canisters.

“The canister lead collection system is simple but extremely effective,” White said. “Once the canisters (which are just 5-gallon buckets) get about two-thirds of the way full, you can just pop it off, put a lid on it, and it’s ready to be recycled. None of the range personnel ever have to come in direct contact with the lead, and it’s easy to maintain.”

PCERJ 2
The Total Containment Trap uses a steel funnel design to safely capture fired rounds without introducing lead contamination into the environment.

The threat of lead dust created by the impact of the bullet is also eliminated through a Dust Collection Unit which uses negative pressure to pull dust and air-borne toxins toward the rear of the bullet trap where it enters a filtering system. This system removed 99.98% of lead and other materials before the air is released into the environment.

Brazilian officials are also grateful for the safety the new range will provide officers during training situations. The old facility often used wood as backstops for shooting drills and presented a significant ricochet danger for trainees.

The new range allows for nearly limitless use of tactical weapons from handguns to fully automatic rifles with complete containment. That assurance makes for a healthy environment where law enforcement trainers can push officers to the limit without putting them in harm’s way.

And Rio de Janeiro’s law enforcement officers will certainly be pushed to the limit as they run intensive tactical drills in the new nine-room Modular Armored Tactical Combat House (MATCH). Equipped with a catwalk and ballistic walls, law enforcement teams can now practice essential close quarter skills like room clearing and hallway navigation with live fire weapons while under close watch from above.

The PCERJ range’s grand opening will be held at the end of June when it becomes fully functional as a law enforcement training facility, but tours have been ongoing for those attending the LAAD Defence and Security International Exhibition held this week in Rio de Janeiro.

Action Target Hits the Beach with a Record-Breaking Bullet Trap

Action Target engineers are doing more on the beaches of Florida this spring than just surfing or getting a tan: they are designing the biggest bullet trap ever built.Outside

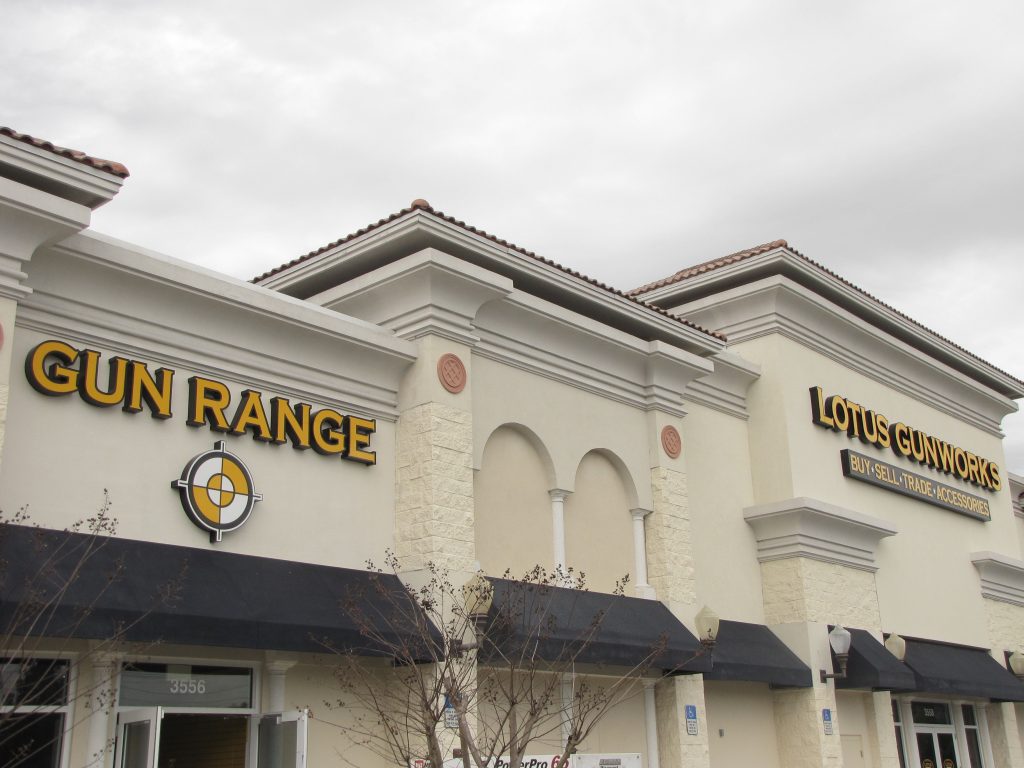

Lotus Gunworks of Jensen Beach, Fla., will be opening its doors next week and inviting shooters to try out its new double-decker shooting range featuring a two-story steel funnel bullet trap. Nicknamed the Lotus 8/11 for the number of steel panels used to create it (eight panels on the bottom slope and 11 panels on the top slope), this version of Action Target’s Total Containment Trap is the first of its kind.

“No one has ever seen a range like this before,” Lotus Gunworks’ Director of Operations Robbie Abell said. “We’re truly making industry history.”

Abell stumbled into the gun industry a few years back when he and a family member decided to go in on a gun store. It seemed like a crazy idea, he said, but with a little bit of luck and ingenuity, they just might be able to make it work.

“We spent about eight months riding around different areas and looking at gun ranges,” Abell said. “After some research, we ran into Action Target and were introduced to the local shooting range consultant Robb Anderson. After that it was a no-brainer, so we freight trained forward.”

They found an existing building in Jensen Beach that met their needs but quickly ran into issues when it became apparent there would not be enough room for two adjacent ranges and a gun store. Abell did not want to cut back on the number of ranges, so the only option was to make a double-decker range where both levels shot into the same bullet trap.

“It hasn’t ever been done before, and at first, the answer was that it couldn’t be done,” Abell said. “I believed there had to be a way, and after three weeks of pushing, I got a call from Robb at Action Target saying, ‘We think we might be able to do this.’”

The answer was to extend the Total Containment Trap (usually just 8 feet tall) to a whopping 19 feet and to mount steel cross beams to support the Mancom Touch ‘N’ Go target retriever system.Upper level stall view

With the equipment issues resolved, the next hurdle was proper ventilation to prevent customers and employees from being exposed to hazardous lead dust. The sheer size of the room presented a unique challenge, so Lotus Gunworks enlisted the help of industry ventilation specialists Carey’s Small Arms Range Ventilation.

Despite doubts that a range that tall could be ventilated at all, Carey’s managed to create a system that not only met environmental standards, but exceeded ventilation standards for even federal shooting ranges.

“The air flow in the upper level was the best I have seen on any range, and the airflow on the bottom was also very good,” Carey’s controls and commissioning tech Mark Hanson said. “This was one of the easiest range ventilation systems we’ve installed.”

Aside from being environmentally safe by completely replacing range air every 80 seconds, all of the filtered air pumped into the range is refrigerated, which, according to Abell, is a pretty big deal in Florida.

“We want this to be the most comfortable range possible,” Abell said, “and we’re doing that with refrigerated air, great lighting, great service and friendly employees. We want people to come and stay. We want this to be a destination point where you hang out for the day.”

Lotus Gunworks is especially friendly to new shooters with a Ti Training simulation system that allows those completely new to shooting to try it out on a real gun equipped with a laser before hitting the range. Friday night fun shoots will also allow people to try out a variety of firearms including fully automatic rifles.

The range is expected to open for business the first week of April and will be holding a grand opening celebration April 20.

Three Keys to Getting Your Shooting Range Approved

In the process of building a shooting range, perhaps the most intimidating part is getting it approved by your local government. Even after you’ve done all the work, raised all the money, and planned everything out, the final say still comes down to a handful of elected officials. Don’t let that make you feel powerless, though. Even if the ultimate decision is in someone else’s hands, there are still things you can do to increase your chances of success.

1) Talk to the Right People

Your local government officials need to know as soon as possible that you’re planning to build a shooting range. They’ll appreciate it if you inform them early and often of your intentions, and that communication can open doors for you later on. You’ll have a much better chance of getting your range approved if you’ve established a relationship with local leaders from the beginning.

Early communication will also help you figure out zoning issues. In most cases, land has to be zoned as either commercial or industrial for a shooting range to be built on it. Find out first thing if the land you’re looking at is zoned appropriately. Zoning requirements for building a shooting range vary depending on where you live, and some places may not even have specific guidelines for ranges. Your local officials will have the most accurate information and can help you understand the requirements. Should you discover that the land you plan to build on is not zoned appropriately for a shooting range, ask the planning and zoning committee if it can be re-zoned. Often, city governments are willing to work with local businesses on zoning issues to keep potential commerce from going elsewhere.

2) Educate Yourself

AT Builds Indoor Firing Range for OrlandoThe more you know about what’s required to get your range approved, the better. Become familiar with local noise and firearms regulations as well as environmental restrictions that will apply to your shooting range. How will you handle noise abatement? How will you dispose of lead? How will you keep customers and employees safe? All of these issues will come up when presenting to the city council. If you already know what their concerns are by asking questions and doing research, you can adequately prepare to answer them.

Once you know what standards you’re shooting range will be required to meet, talk to an Action Target territory manager to find out what options are available. Action Target specializes in building state-of-the-art shooting ranges and offers several technologies to meet the stringent requirements of government regulations. For example, Action Target’s Total Containment Trap (TCT) is the most environmentally-friendly bullet trap in the industry and makes lead containment safe and easy. With the addition of a Screw Conveyor System (SCS), all bullets and range debris are safely collected and deposited into a sealed barrel for convenient disposal. Action Target also provides sound-abating safety baffles, acoustically-rated wall systems that reduce reverberation by 98%, bullet-proof transparent lane dividers, and ventilation systems that filter air and protect customers from lead exposure. No matter what regulation your shooting range is under, chances are Action Target has a patented technology to meet it.

3) Prepare to Present

Once you’ve talked to your local government officials and learned everything you need to know about regulations and restrictions, all that’s left to do is present your plan to the city council. For those inexperienced in public speaking, this may be the scariest part of the whole process. To make the experience smoother, ask a city council member in advance what information they want from you, write down a list of questions they may ask you, and prepare all of your answers ahead of time so you don’t forget in the heat of the moment.

If you feel like you need additional backup, Action Target representatives are more than willing to attend the city council meeting with you no matter where you live. That way you can have a shooting range expert standing next to you to answer any questions about the technology and safety features of your future range.

The sales team at Action Target is willing to do whatever it can to make the approval process as seamless and successful as possible for you. If you have any questions or concerns about getting your shooting range approved, call Action Target at (801) 377-8033 and ask to speak with your area representative.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years, but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

This article was originally published in the Action Target Journal on June 14, 2012.

Myths About Wet Steel Traps

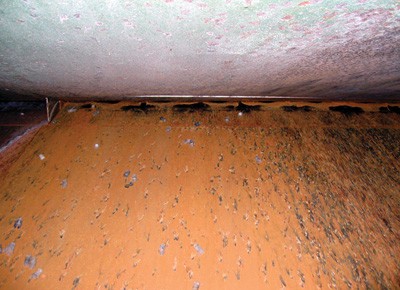

Wet Steel Trap 1As with anything else in life, the ability to make an informed decision is based on the quality of the information you receive. The purpose of this article is to explore some of the claims associated with using water on steel funnel traps.

This information represents the opinions of Action Target based on the experience and observations of our range consultants and engineers. We encourage you to conduct your own research and speak with other users about their experiences with the various bullet trap technologies presented before drawing your own conclusions.

CLAIM #1: You can use any type of ammunition on a wet steel trap.

It has been reported that frangible ammunition may cause problems with wet funnel traps because the powder created by certain types of disintegrating bullets can mix with the water and harden into a cement-like substance resulting in an extremely difficult cleaning process.

CLAIM #2: Wet steel traps eliminate lead dust on your range.

If a bullet strikes an area on a wet steel trap where the water and oil mixture is flowing (like on the bottom plates), the amount of lead dust generated at the trap on initial impact may be reduced. But if the bullet hits on the upper plates where no water is present, lead dust can be generated much the same as on a trap where no water system is in use. Also, lead dust containment systems such as water are meant to deal with lead on the bullet trap itself. They typically have little or nothing to do with emissions at the firing line or other areas of the range.

CLAIM #3: Wet steel traps capture all pullets whole and eliminate splatter and ricochet.Wet Steel Trap 7

The gently sloping angles of steel funnel plates do help prevent bullet breakup on initial impact, but bullets can also fragment into small pieces once they enter the rear chamber and strike more steel surfaces inside. Also, many designs include a vertical edge at every seam where two chambers meet and are attached to each other. Deflectors are typically used to protect these vertical edges, and bullets can fragment more significantly if they strike these deflectors. Our observations would indicate that the degree of bullet fragmentation is mostly related to the velocity of the bullet. Slower pistol rounds may be able to be captured more whole when using a primary decelerant or lubricant such as water, but faster rifle rounds tend to disintegrate whether the water is present or not.

CLAIM #4: Wet steel traps are more environmentally friendly.

A doctor’s first and fundamental responsibility is to do no harm and to not make a difficult situation worse than it already may be. The same can be said for a bullet trap. Because lead disposal is already difficult enough for most shooting ranges, the last thing we thing a bullet trap should do is to complicate the matter by mixing the lead with other substances such as water, oil, chlorine, or antifreeze.

CLAIM #5: Wet steel traps function equally well indoors and outdoors.Wet Steel Trap 9

Referring back to claim #4, it can be much more difficult to contain all potential contaminants generated by a wet steel trap on an outdoor range. Rain, snow, ice, wildlife, leaves, twigs, and other clogging debris can complicate matters when operating outdoors.

CLAIM #6: One piece welded funnel plates are better than modular funnel plates.

If everything is welded together on site, you can end up with a bullet trap that is much more difficult to service or repair should anything go wrong. Long, continuous sheets of plate steel can be more prone to stress fractures and cracking than shorter, modular plates. That is one reason why bridges and overpasses are often formed by bolting together multiple modular pieces. When modular funnel plates and joint systems are properly designed, you get a strong and maintenance-friendly bullet trap that requires no sacrifice of safety or performance.

CLAIM #7: Funnel plates mounted at a 12 or 13 degree angle function significantly better than funnel plates mounted at a 15 degree angle.Wet Steel Trap 6

If a 12 or 13 degree slope is better than a 15 degree slope, then isn’t 11 better than 12? Why not drop to 9 degrees? Or 7? Since every degree you go down can increase the cost and the front-to-back size of the trap, there is a point at which you can reach the point of diminishing returns. All other factors being equal (steel hardness, bullet trajectory, etc.), our high speed video tests do not reveal any significant difference between impacts at 12 or 15 degrees. Although it is possible to install an Action Target trap with plates mounted at either 12 or 13 degrees, we believe 15 degrees to be optimal for most uses.

CLAIM #8: A 30-inch diameter in the circular deceleration chamber is better than a 26-inch diameter.

Following the same logic, why not use a 40-inch diameter? Why not 50? Again, it is important to weigh multiple factors such as performance, cost, and space. Action Target believes that the most important thing about a chamber is that it effectively contain rounds, that it have a good service life, and that it can be easily serviced if and when the need arises. We believe our chamber design achieves these values in an optimal way.

CLAIM #9: Wet steel traps don’t require much maintenance.Wet Steel Trap 8

Regular maintenance should be expected with any bullet trap, regardless of the materials used. Just like anything else, range equipment must be properly cared for to keep it working.

The wet steel trap designs we have seen include a water pump, spray nozzle, and filter systems that should be regularly maintained. Potential debris like cardboard, paper, wood, and shotgun wads can certainly be a problem if they are introduced into these systems. Lead should be removed from the collection system and disposed of properly. And we recommend you account for any exposure the lead may have had to water, oil, chlorine, or antifreeze. Water sources should be maintained and you should deal with any potential sources of flooding or leaking. In some cases, an external settling pond or a drainage tank with a waste trap may be needed to keep contaminated water from entering the sewer system. Finally, you should consider any additional effect the potentially higher humidity may have on your ventilation system and any HEPA filters.



NOTE: None of the photos used in this article are of Action Target bullet traps.

Myths About Rubber Berm Traps: Part II

As we discussed in the first part of this article, rubber berms are a fantastic way to contain rounds on ranges that see limited use, but they aren’t perfect in every circumstance. Rubber berms have their limitations no matter what you may read. If you are considering installing a rubber berm on your indoor or outdoor range, make sure you have a clear understanding of the facts about what rubber berm are realistically capable of handling. Here are three more myths you may encounter in your research of rubber berm technology.

CLAIM #4: Rubber berm traps are easy to clean. You can even do it yourself with a special vacuum or with doors on the back of the trap.

When too many bullets are suspended in the trap for it to function safely, they should be mined from the rubber and disposed of properly. Some early claims stated that a million rounds per lane could be fired before cleaning was required, but our real-world experience and documented accounts reveal that a rubber berm trap should be cleaned after about 80,000 rounds per lane.

The process of separating the lead from the rubber can be a very specialized and time-consuming task. The top 8 to 12 inches of rubber are typically taken off the entire trap and then separated to remove the bullet fragments. The lead fragments can be classified as a recyclable material, but may require complicated permits to transport and dispose of legally. After the lead has been properly dealt with, the remaining rubber is placed back on the trap. Even with the best industrial equipment, it can take an experienced crew nearly seven full days to clean a 20 lane trap. Because of the extensive lead exposure inherent in the process, everyone involved should be outfitted with the proper safety equipment including complete hazardous-material suits and certified respirators.

Another claim states that bullets will travel all the way through the rubber to the rear of the trap where they can easily be removed through doors mounted in the back of the steel support structure. Our experience shows that handgun rounds typically penetrate only 6 to 10 inches into the usual 24 inches of rubber, and most rifle rounds only penetrate 12 to 16 inches. Even as newly fired bullets impact other bullets already in the rubber, we have not seen fragments even come close to the rear of the trap. We have never found these “cleaning” doors to do anything more than add unnecessary expense and difficulty to the trap.

CLAIM #5: Rubber berm traps greatly reduce the noise levels on your range.

Sound problems on shooting ranges are caused by the noise generate when firing a gun and the interaction of that noise with the walls, floors, and other surfaces of your range. When you compare the surface area of a bullet trap with that of the floor, walls, and ceiling of a typical range, the trap typically makes up only about 5% of the total surface area. This small percentage combined with the fact that rubber is only a fair sound absorbing material means a rubber berm trap may have minimal impact on the sound levels on your range. We have found that using proper sound absorbing materials and techniques on your walls and ceiling baffles can give far better results.

CLAIM #6: Adding more technology and additional devices to your trap will improve its performance.

There is only so much you can do to “technologically enhance” chopped rubber. That being said, let’s look at some of the most common add-ons to rubber berm traps.

The first device is a large collection bin or “hopper” that spans the top of the trap. In certain cases, the chopped rubber has been found to migrate and flow toward the bottom of the trap leaving undesirably thin coverage near the top. When this happens, the extra rubber that accumulates at the bottom of the trap should be periodically collected and returned to the hopper. This process can be very labor intensive, and you should employ the same safety equipment and procedures used when cleaning the trap.

Another add-on uses large sheets of rubber that act as a skin over the entire surface of the trap. This cover is designed to help keep the small rubber granules in place and to keep small bullet fragments from escaping back toward the shooter. As shots are fired into concentrated areas, the cover can quickly develop larger and larger holes, requiring time and money to maintain. Another downside to a cover like this can be heat retention. In hot conditions, the membrane may reduce the ability of the granules to “breathe” building up heat and increasing the chance of fire when other ignition events are present.

You have Options

The equipment you install in your shooting range can have a significant effect on your range’s future success. Rubber berms work great on ranges that don’t see excessive everyday use, but if you start having more customers than you originally planned for, it quickly becomes a less than ideal solution. After evaluating the benefits and limitations of a berm trap design, you may conclude that this technology is the best overall choice for your needs. If not, know you have other options.

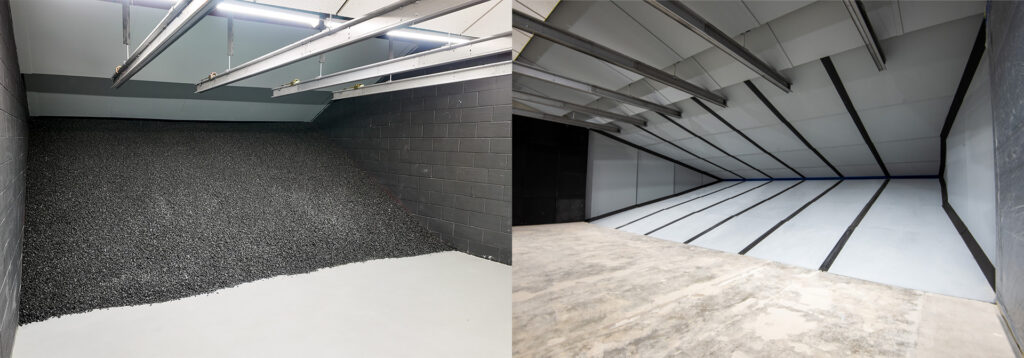

The Action Target Total Containment Trap (TCT) can be a great solution if you are going to run a lot of people through your range. With three different types of hands-free lead removal systems, the TCT allows for varying levels of use and greatly diminishes the time you have to spend maintaining your shooting range. If your range’s anticipated level of use is on the border of being too much for a rubber berm, plan on being successful and install a TCT. Don’t limit your long-term success based on short-term finances.

Rely on the Experts for Help

There are hundreds of things to take into consideration when building a shooting range, but your top priority should always be safety. Before anything else, make sure your range is going to be safe for your customers, your employees, and the environment. If you are considering building a range, talk to the Action Target representative in your region and he will be happy to help you find the right equipment to fit your needs and budget. You can also use our Request a Quote form to get started on your range upgrades today.

Please note: the information included in this article has come from both documented studies and the personal experience of Action Target shooting range specialists. This information has been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

Myths About Rubber Berm Traps

ATI_evsAt its most basic level, a rubber berm trap is approximately two feet of chopped rubber laid on top of an angled support structure to create a backstop or “berm” to catch bullets fired into it. There are several different approaches to this fundamental idea, but the same basic principles apply to them all. When you shoot into a dirt berm, the friction of passing through the dirt is what ultimately stops the bullet. A rubber berm trap works exactly the same way, with the obvious difference being the use of chopped rubber instead of dirt or sand.

Because the rubber is a softer collection medium, ricochet and lead dust can be significantly reduced in some applications. Cross-range firing is safer, as is firing at extremely close distances. Such benefits make this trap an excellent choice for certain indoor ranges and other low-volume ranges where lead dust is a concern.

Rubber berms aren’t perfect in every circumstance, however, no matter what you may read. In our experience, we’ve encountered several myths about what rubber berm traps and their accompanying accessories are capable of doing. Before you make any decisions on your range, make sure you know the facts.

CLAIM #1: Action Target disapproves of rubber traps because all they make are steel traps.

Not only does Action Target approve of rubber traps for certain shooting range applications, we have been manufacturing our own for more than a decade and have patents covering our unique berm trap technology. The hassle-free design of Action Target’s rubber berm trap takes advantage of the practical and beneficial properties of rubber, while eliminating the weaknesses and unnecessary elements of other designs.

We recognize steel traps and rubber traps have very different benefits and limitations. It is important for the range operator to understand these issues clearly before choosing one technology over the other.

CLAIM #2: Rubber berm traps capture all bullets whole and eliminate splatter and ricochet.

Chopped rubber is obviously softer than steel, so some bullets can indeed be captured whole. However, that is not the whole story. After multiple rounds have been fired into the same concentrated area of the trap, newly fired bullets can begin impacting other bullets previously suspended in the rubber. As one bullet impacts another, both can begin to break into small pieces. These “hot spots” of concentrated lead can form behind turning targets, indoor range target retrievers, and other fixed-position targets on your range and can pose a significant ricochet hazard if not managed properly.

When cleaning rubber berm traps, it is not unusual to find masses of small bullet fragments that are nearly indistinguishable from bullet fragments taken from a steel bullet trap. Just because you are shooting into a soft substance does not mean the bullets won’t fracture and break up. There is still the chance for the bullet to strike another bullet, and that chance increases with every day of range use.

Because rubber berm traps have no hard surfaces or obstacles to interfere with cross-lane shooting, they can be particularly effective in tactical applications where shooters move from one position to another and engage targets that are not directly in front of them. As long as hot spots are effectively managed, a rubber berm trap can also be a good choice for very close range shooting.

CLAIM #3: Rubber berm traps are specially treated so they will not catch fire.

Fire Concern with Rubber Berm Trap
NOT an Action Target Rubber Berm Trap

There are many documented cases of rubber bullet traps catching fire. Most manufacturers, including Action Target, treat their rubber with some kind of fire-retardant substance to reduce the risk of fire, but without taking additional precautions, it is still possible to have a serious problem.

You may see a demonstration where a piece of fire-treated rubber is held to a direct flame without burning, or you might read reports about tracer rounds being fired into rubber berm traps without igniting the rubber. These are unrealistic scenarios. A full size trap on an actual shooting range can collect large quantities of unspent gunpowder and flammable debris from paper and cardboard targets. Also, bullets fired into the trap can break open chunks of treated rubber exposing the untreated surfaces inside. These issues alone may pose a considerable risk of fire, but the risk can increase dramatically if tracers or other incendiary rounds are fired into the trap – a practice that Action Target strongly discourages.

A recent attempt to decrease the potential fire hazard of rubber berm traps involves mixing the chunks of chopped rubber with hydrated gel beads. The theory is that as bullets are absorbed into the rubber, they will be cooled by the gel to reduce heat build-up. Because no long term data seems to exist to support this theory, it is unclear whether the gel can keep a fire from starting or keep the fire from spreading after it has already started. It is also unclear what difficulty such a gel may cause when it comes time to clean the trap and separate the lead from the rubber.

Rely on the Experts for Help

There are hundreds of things to take into consideration when building a shooting range, but your top priority should always be safety. Before anything else, make sure your range is going to be safe for your customers, your employees, and the environment. If you are considering building a range, talk to the Action Target representative in your region and he will be happy to help you find the right equipment to fit your needs and budget. You can also use our Request a Quote form to get started on your range upgrades today.

Please note: the information included in this article has come from both documented studies and the personal experience of Action Target shooting range specialists. This information has been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.



The Equipment You Need to Make a Good Shooting Range Great: Pt. 2

By Matt Brinkerhoff, Action Target Range Consultant

When it comes to shooting ranges, bullet containment is the paramount concern. As we discussed in our last article, the appropriate bullet traps and safety baffles need to be in place in order to keep your customers and employees safe. That means bullet traps that reliably collect and store bullets and allow for safe disposal of collected lead. That also means ballistic paneling on the walls and ceilings to ensure any shot that misses the bullet trap has no chance of exiting the building. But once you’ve established a strong foundation with the help of Action Target, you can move on to the more glamorous aspects of building a shooting range, like target retrieval systems and computer controlled reactive targets.

Here at Action Target, we provide a wide array of shooting range equipment from moving targets and shooting stalls to sound abatement and ventilation. With the help of our many corporate partners, we do our best to give you the most complete shooting range package on the market.

Target Systems

With the assistance of our business partner Mancom, Action Target has worked to provide several different target retrieval systems to meet the specific needs of customers. Our Standard Smart Target Retriever eliminated the problem with sag and sway that are inherent in many cable guide designs with the use of a rigid steel track and armored trolley system. Distance control is also made easier with two different operation options. With our toggle option, a simple flip of a switch send the target back to a pre-determined distance, while our Smart Pad gives the shooter complete control over distance and movement. With the addition of our Deluxe Smart Retriever, which allows 180 degree turning action, the shooter or range master also has the ability to program and replay a series of target positions and turning actions.

If your shooting range needs to facilitate tactical training, however, you may want more than just a static position in a stall. Proper tactical training requires realistic scenarios, which means shooter movement and target movement. Training on moving targets hasbecome mandatory for law enforcement agencies across the country. Because running seems to be a part of most gunfights, the ability to fire safely and accurately at moving threats can be one of an officer’s greatest assets. To better facilitate quality tactical training, Action Target provides two types of running man systems: the portable Runner family and the more permanent Track Runner. The portable Runner systems not only simulate horizontal running scenarios, but armed charging scenarios as well. With two AT Builds New Shooting Range and Storedifferent portable systems to meet your budget and needs, running targets can easily be incorporated into your training program. The Track Runner provides the tools for a wide variety of situation with single or double track configurations, cardboard and steel target compatibility, variable speed and electric braking, and remote hand held control of movement.

Action Target also provides turning targets to foster quick and accurate reactions with good guy / bad guy threat identification. Drawing and firing at a target you already know is a threat is fairly easy, but real life scenarios aren’t always so simple. To eliminate the inaccuracy of this scenario, law enforcement demanded targets that turn toward and away from the shooter at specific time intervals. Turning targets allow trainees to practice evaluating the target quickly while performing tactical maneuvers. With six different turning target systems, Action Target can design the perfect system to fit your needs.

Ventilation

Ventilation is extremely important on indoor shooting ranges. Lead and other airborne toxins are introduced to the environment during shooting and can be hazardous to the health or your employees and customers if inhaled. Any enclosed area where shooting is done must be properly ventilated in order to meet NIOSH, EPA, and OSHA standards. Installing a ventilation system for your range may be beyond the abilities of your friend George who does air conditioning. Improperly designed systems may just stir up the air rather than replace it.

To provide you with the best and safest ventilation system, Action Target has partnered with Carey’s Heating and Cooling, the world’s premier provider of shooting range ventilation systems. Carey’s ventilation systems are the best-performing and most efficient systems available on the market today and are designed to exceed NIOSH, EPA, and OSHA air quality standards. Through the use of a ceiling-mounted 180 degree air delivery system as well as digital and analog control systems which adapt to changing environmental conditions to maintain the required air velocities and building pressures, Carey’s ventilation systems push and pull air downrange at a rate fast enough to completely replace the air within a large range in less than two minutes. The air then goes through preliminary filters to remove large impurities before passing through a HEPA filter to eliminate 99.97% of remaining contaminants, making the exhausted air even cleaner than the air outside.

Sound Abatement

Sound abatement is one of those things many shooting range owners ignore initially and then wish they hadn’t when neighbor relations begin to decline. If your shooting range is near residential areas or if housing begins to develop around your range, proper sound abatement is absolutely vital to your future success. If too many people begin to complain about the noise level, you could be shut down permanently.

But sound abatement is not only important for the people outside the range, but for people inside the range as well. Gunshots have an extremely high decibel level which is only compounded on an indoor range when the sound waves bounce off the hard floor, walls, and ceiling. Ear protection is absolutely necessary on any range, but it may not be enough to protect your employees who spend hours and hours in the range every day. The constant reverberation of gunshots within an enclosed area can actually produce negative physical effects on the body other than just hearing loss. Prolonged exposure to high decibel percussive noise such as gunshots can cause nausea or fatigue if the reverberation isn’t properly dissipated.

These problems can be easily avoided by limiting the length of shifts for employees working in the range and by installing proper sound abatement material. All ceiling and wall baffles installed by Action Target are covered with acoustic tiling to help reduce the amount of reverberation within the range. We’ve also teamed up with Troy Sound Wall Systems, the creator of the highest acoustically rated wall systems in the world, to bring you one of the most viable options on the market. By installing the Troy Sound Wall System in ranges, we have managed to reduce reverberation by 98%. That’s 98% percent of reverberation you don’t have to worry about threatening the health of your employees and customers.

Rely on the Experts for Help

Action Target LogoThere are hundreds of things to take into consideration when building a shooting range, but your top priority should always be safety. Before anything else, make sure your range is going to be safe for your customers, your employees, and the environment. If you are considering building a range, talk to the Action Target representative in your region and he will be happy to help you find the right equipment to fit your needs and budget.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

The Equipment You Need to Make a Good Shooting Range Great: Pt. 1

By Matt Brinkerhoff, Action Target Range Consultant

Anyone who has been to a quality shooting range knows it requires much more than a line drawn in the dirt and a few paper targets. Great shooting ranges are designed to protect customers, employees, and the environment. Here at Action Target, we specialize in designing, manufacturing, and installing superior shooting range equipment to meet all of your ballistic needs from bullet containment to target retrieval systems. Quality matters when the safety of your customers and employees are in question, so don’t settle for good when your shooting range could be great with the help of Action Target.

Bullet containment is the number one concern on any shooting range, and without the proper designs and equipment, it can be nearly impossible to ensure the safety of those inside and outside the range. Bullet containment basically comes down to two elements: bullet traps and baffles. The bullet trap should be designed to stop any high powered round and handle the level of traffic expected at your range while safely collecting all projectiles for proper disposal. Any shot downrange should be stopped by the bullet trap, but safety baffles are also needed to keep bullets from exiting the ceiling of your range or ricocheting off the walls in the event of an errant shot. With the right combination of bullet trap and baffles, you can rest easy knowing no matter where a shot is fired on your range, it won’t have a chance to escape.

Bullet Traps

Action Target offers two different kinds of bullet traps, the Rubber Berm Trap (RBT) and the Action Target Total Containment Trap (TCT). A rubber berm trap consists of an angled metal plate covered in chopped rubber two feet thick. Action Target’s rubber berms utilize a patented combination of fire retardant and nonflammable adhesive to minimize fire danger and prevent migration. Being a softer collection medium, rubber significantly reduces ricochet and lead dust in some applications which makes it a great option for ranges that don’t see excessive everyday use. Due to the simplicity and relatively low cost of the materials used, a rubber berm can be extremely economical. But if you start having more shooters than you originally planned for, it can also become a wrench in your wallet. Rubber berms have to be cleaned and the bullets lodged in them mined every 80,000 rounds. Not only does it cost money to clean the rubber berm and replenish the chopped rubber periodically, but the more days you have to close your range for maintenance, the more money you lose.

Action Target's Total Containment Bulle TrapThe Action Target Total Containment Trap can be a great solution to this problem if your daily foot traffic is able to balance the expense of installing and maintaining it. With two different types of lead removal systems, the TCT allows for varying levels of use and greatly diminishes the time you have to spend maintaining your shooting range. Essentially, the TCT is a giant armor steel funnel that directs every shot fired into a small gap at the rear of the trap. Once a bullet passes through that gap, it enters an elliptical deceleration chamber where it spins until it loses energy and falls into the collection trough through the bottom of the chamber. All of the lead is then collected and stored using one of two systems, the hands-free Screw Conveyor System or the Canister System. These two systems are designed to prevent lead exposure and make disposing of hazardous range debris as simple and easy as possible. The TCT is perfect for high traffic ranges, and when combined with our unique Dust Collection Unit, it is the safest and most environmentally friendly bullet trap on the market.

Safety Baffles

Safety baffles are often one of the most neglected areas of shooting range design, but they are absolutely crucial to the ballistic security of your range. In addition to keeping fired bullets from exiting the range, baffles offer protection for overhead lights, pipes, ventilation ducts, and other structures. As much as you would like them to, shooters at your range are not always going to shoot perfectly straight, and when they inevitably hit the ceiling, you’ll be glad you had them installed.

Action Target Safety Baffles used in LAAction Target’s patented wall and ceiling baffles are designed to reduce noise, eliminate ricochet, and ensure complete bullet containment. Our baffles are composed of four layers: acoustic paneling, plywood, an air gap, and steel. Acoustic panels are placed on the outside of our baffles to minimize gunshot reverberation within the range and prevent sound transmission beyond the range. Plywood is then used to contain shots fired into the baffle. Bullets can easily pass through these two layers, but once a bullet hits the steel and shatters, the plywood effectively contains the fragments. The air gap works as a buffer to allow the bullet room for fragmentation before bouncing back against the plywood. The most important part of the baffle is the steel plate. Action Target offers four grades of safety baffles ranging from 10 gauge steel to abrasion resistant armor steel to meet your range’s ballistic specifications and budget. If you know what ammunition and firearms will be allowed on your range, we can help you find the right baffles to complete it.

The type of training your range is expected to accommodate will dictate the configuration of your safety baffles. Action Target offers both static and tactical configurations based on the “no blue sky” principle. According to this principle, a shooter who is facing downrange on an outdoor range (though, this principle also applies to indoor ranges as well) should not be able to see any blue sky. If shooting on your range will only be from a static point on the firing line, the ceiling baffles are placed in a static configuration meaning they are spaced closer together near the firing line and further apart near the bullet trap. Even though there are large gaps between the baffles at the end of the range, no blue sky can be seen from the static shooting position at the firing line which means it’s impossible for a bullet to escape vertically.

If your range is expected to accommodate tactical training where shooters will be moving downrange, having gaps in the ceiling baffles anywhere on the range isn’t acceptable. With a tactical baffle configuration, baffles are place close together and overlap one another so even if a bullet is fired straight up, a baffle will be there to stop it no matter where it is on the range. This tactical configuration allows shooters to move freely without any danger of rounds exiting the ceiling. Wall baffles are also highly recommended if tactical training will be conducted on your range. While hardened concrete is balistically sound, wall baffles add an additional level of protection and completely eliminate ricochet while also decreasing reverberation within the range.

Rely on the Experts for Help

There are hundreds of things to take into consideration when building a shooting range, but your top priority should always be safety. Before anything else, make sure your range is going to be safe for your customers, your employees, and the environment. If you are considering building a range, talk to the Action Target representative in your region and he will be happy to help you find the right equipment to fit your needs and budget.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

Indoor vs. Outdoor Shooting Ranges: What You Should Know Before You Start Building

By Chris Hart, Action Target Range Consultant

Everybody has their own preference when it comes to shooting ranges. Some people like the open-air feel of an outdoor range where they can shoot steel targets at 500 yards while others prefer the air conditioned comfort of indoor ranges where target distance can be controlled with the push of a button. Both have pros and cons and there’s not necessarily a right or wrong answer, but there are some things you need to consider before building a range to make sure you are providing your future customers with what they want and need. To better help you in the decision making process, here are some pros and cons for both outdoor and indoor shooting ranges.

Outdoor Ranges

PROS

Action Target Line of Fire with Swing Up TargetOutdoor ranges generally require less expensive equipment. An outdoor shooting range can be as simple as a shooting line and a dirt backdrop or as complex as a law enforcement proving ground with moving targets and realistic tactical simulations. Either way, the equipment you need for an outdoor range will probably be less expensive than an indoor range because you don’t need a building to house it in.

Outdoor ranges can provide a greater range of shooting with appropriate berms. While indoor ranges are generally limited to shooting straight ahead from a fixed position, outdoor ranges allow shooters to participate in tactical training with up to 180 degrees of firing mobility. The more flexibility your range offers, the more realistic your training scenarios will be.

In addition to increased firing mobility, outdoor ranges also allow for greater tactical training freedom. Training at an outdoor range can include multiple firing stations, a greater range of distance, vehicle scenarios, and terrain-based exercises.

With an outdoor range, you are less limited in the ammo you can use. While indoor ranges are sometimes restricted to bullets within a certain muzzle velocity and bullet type, most outdoor shooting ranges are virtually unrestricted. Some outdoor ranges are even capable of handling incendiary rounds and artillery fire. While training of this kind may not be necessary or even desirable at your range, the capability is available. Outdoor ranges can also more safely accommodate shooting steel targets.

CONS

Building an outdoor range requires expensive earthwork and soil engineering. Not all sites are immediately suitable for an outdoor shooting range and may require extensive excavation to ensure bullet containment. The less suitable the site, the more money you will have to spend to make sure the backdrop and containment systems meet federal regulations and local statutes. You also may have to bring in power, water, and sewage hook ups from a long distance away, thus increasing the cost and adding to the needed infrastructure of roads, parking lots, and other development.

Due to the open-air nature of outdoor ranges, however, complete bullet containment is usually impractical due to expense. This is why location is such an important element in the building of an outdoor range. Outdoor shooting ranges must be built in an area where an errant shot that goes over the backstop is incapable of doing damage; this is referred to as Surface Danger Zone (SDZ). This can require building the range in a remote area far from the city, and being far from civilization means your customers are going to have to travel a longer distance to use the range.

It is inherently difficult to contain lead and noise at an outdoor range, and as housing encroaches on formerly uninhabited areas, more and more outdoor shooting ranges are being shut down. While the location of your outdoor range may seem safe from housing development, conditions can quickly change and endanger the future of your range. You must try to plan for variables that could affect your outdoor range in the long term future.

Indoor Ranges

PROS

Because indoor ranges can easily be built in the middle of cities, they are much more convenient for customers. For commercial ranges, that means increased visibility and accessibility. For law enforcement, that means a cut in overtime costs for police departments because officers don’t have to travel as far as they would to train at an outdoor range. They can also easily train during inclement weather conditions that would be more difficult on an outdoor range.

Technological improvements are making indoor ranges a more viable option for tactical training. Ballistic doors can allow vehicles to enter the range for training scenarios, lighting can be adjusted to simulate daylight and low light situations, sound effects can be played over the loud speakers to induce stress or simulate a combat environment, and bullet traps like the Total Containment Trap from Action Target allow for increased flexibility in shooting across firing lanes or at moving targets.

For commercial ranges, an indoor shooting range can provide a significant retail avenue. When combined with a retail firearm and an ammunition store, indoor ranges can be highly profitable ventures. Customers are more likely to buy ammo at the range where they shoot and are more likely to buy a gun if there is an opportunity to try it out on a shooting range first.

CONS

Indoor shooting ranges are more expensive to build and require a building to house them. For an indoor range you need to either build a new building from scratch or find a building that meets municipal requirements for parking, sound, and zoning that can be properly retrofitted to house an indoor range. Indoor shooting ranges also often require a target retrieval system, ceiling baffles, fully ballistic walls, bullet traps, a ventilation system, and lighting. All together, the equipment and facility costs can greatly exceed that of an outdoor range.

Indoor ranges are sometimes limited in the caliber and type of bullet that can be fired, depending on the range equipment chosen. The use of old or home-made bullet traps and the increased risk of ricochet that comes with an indoor shooting range naturally limits shooting capabilities. While modern bullet traps provided by Action Target can handle up to .50 BMG, many older indoor ranges cannot allow the use rifle calibers because their old range equipment designs will not safely stop rifle rounds. Because of size and sound constraints, some ranges don’t allow rifle shooting at all.

Indoor ranges also require costly range ventilation systems to meet OSHA and EPA requirements. For the health of yourself and your future customers, I should mention that your typical local HVAC contractor usually cannot properly design and install the type of system required for a clean and safe indoor range that I would shoot in with my own family. Ask your ventilation contractor how many indoor range ventilation systems they have designed and also ask them what design criteria is required to meet OSHA and EPA requirements. If they cannot guarantee that their system will meet these requirements, you might be making a costly mistake.

Rely on the Experts for Help

Whether you are deciding to build an indoor or an outdoor range, I recommend you contact the Action Target representative in your region and they will be happy to answer any questions you have and will help you determine what type of range and what equipment will best fit your needs and budget. They build hundreds of new ranges every year and will be able to draw on their vast experience and resources to help advise you with your project.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

Three Keys to Getting Your Shooting Range Approved

In the process of building a shooting range, perhaps the most intimidating part is getting it approved by your local government. Even after you’ve done all the work, raised all the money, and planned everything out, the final say still comes down to a handful of elected officials. Don’t let that make you feel powerless, though. Even if the ultimate decision is in someone else’s hands, there are still things you can do to increase your chances of success.

1) Talk to the Right People

Your local government officials need to know as soon as possible that you’re planning to build a shooting range. They’ll appreciate it if you inform them early and often of your intentions, and that communication can open doors for you later on. You’ll have a much better chance of getting your range approved if you’ve established a relationship with local leaders from the beginning.

Early communication will also help you figure out zoning issues. In most cases, land has to be zoned as either commercial or industrial for a shooting range to be built on it. Find out first thing if the land you’re looking at is zoned appropriately. Zoning requirements for building a shooting range vary depending on where you live, and some places may not even have specific guidelines for ranges. Your local officials will have the most accurate information and can help you understand the requirements. Should you discover that the land you plan to build on is not zoned appropriately for a shooting range, ask the planning and zoning committee if it can be re-zoned. Often, city governments are willing to work with local businesses on zoning issues to keep potential commerce from going elsewhere.

2) Educate Yourself

AT Builds Indoor Firing Range for OrlandoThe more you know about what’s required to get your range approved, the better. Become familiar with local noise and firearms regulations as well as environmental restrictions that will apply to your shooting range. How will you handle noise abatement? How will you dispose of lead? How will you keep customers and employees safe? All of these issues will come up when presenting to the city council. If you already know what their concerns are by asking questions and doing research, you can adequately prepare to answer them.

Once you know what standards you’re shooting range will be required to meet, talk to an Action Target territory manager to find out what options are available. Action Target specializes in building state-of-the-art shooting ranges and offers several technologies to meet the stringent requirements of government regulations. For example, Action Target’s Total Containment Trap (TCT) is the most environmentally-friendly bullet trap in the industry and makes lead containment safe and easy. With the addition of a Screw Conveyor System (SCS), all bullets and range debris are safely collected and deposited into a sealed barrel for convenient disposal. Action Target also provides sound-abating safety baffles, acoustically-rated wall systems that reduce reverberation by 98%, bullet-proof transparent lane dividers, and ventilation systems that filter air and protect customers from lead exposure. No matter what regulation your shooting range is under, chances are Action Target has a patented technology to meet it.

3) Prepare to Present

Once you’ve talked to your local government officials and learned everything you need to know about regulations and restrictions, all that’s left to do is present your plan to the city council. For those inexperienced in public speaking, this may be the scariest part of the whole process. To make the experience smoother, ask a city council member in advance what information they want from you, write down a list of questions they may ask you, and prepare all of your answers ahead of time so you don’t forget in the heat of the moment.

If you feel like you need additional backup, Action Target representatives are more than willing to attend the city council meeting with you no matter where you live. That way you can have a shooting range expert standing next to you to answer any questions about the technology and safety features of your future range.

The sales team at Action Target is willing to do whatever it can to make the approval process as seamless and successful as possible for you. If you have any questions or concerns about getting your shooting range approved, call Action Target at (801) 377-8033 and ask to speak with your area representative.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years, but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

The Top 3 Things to Consider When Building a Shooting Range

Building a shooting range is a huge endeavor that should be approached cautiously and systematically. There are many things to consider and potential issues you may have to deal with; however, don’t let that deter you. Building a shooting range is a perfectly attainable goal if you start things right. Even if you already own a shooting range, or if it’s just a future dream, the three steps in this week’s newsletter can help you smooth out the process and keep you on the road to success.

1) Know Your Purpose

Figure out exactly what you want to do with your shooting range and then design it. Don’t get caught up in the excitement of building a range and then try to figure out how to use it afterward. Paying for and maintaining a bunch of functions that you don’t need or want is almost as bad as not meeting your needs in the first place. We offer custom and turn-key designs for ranges of all shapes and sizes, so instead of just picking the flashiest range in the catalog, decide independently what you need to get the job done. If we don’t offer a range that matches your unique requirements, we’ll design one that does.

Make sure you know who you’ll be serving. Your customers should be the deciding factor in many of the considerations you’ll come across in the planning stage. If you don’t offer what they want, they’ll go elsewhere to find it. Do some research on your potential customers and ask yourself some of these important questions.

For commercial ranges, ask yourself:

  • Will my patrons be more comfortable at an outdoor or an indoor range?
  • How many shooters need to be accommodated at the same time?
  • Will there be unsupervised shooting on the range?
  • Are my customers more concerned with hunting or self-defense?
  • What types of guns and ammo am I going to allow?
  • Will my range be appropriate for family use?

For law enforcement ranges, ask yourself:

  • Will my emphasis be on training, qualification, or both?
  • Will my range consist of a single firing line only, or does it need to allow close-range tactical training?
  • Does my range need to accommodate the use of vehicles in tactical situations?
  • Will the SWAT team use the range?
  • What weapons and ammo will be used and at what distances?
  • Will citizens be allowed to use the range on designated days?

2) Involve the Right People

Action Target may be able to provide you with the best shooting range technology in the world, but it’s going to be the people you know that will make your range a success. The key to a smooth process is communication. As they say in the field of public relations, “Don’t bulldoze the neighborhood without talking to the tenants first.” The point is, there are people you need to communicate with before you ever start building your range.

If you plan on having resident firearms trainers, make sure they are involved from the beginning. Your trainers will be using the range the most and should have a say in the way it’s designed. Often, they are going to have the best ideas when it comes to the practical uses of shooting range technology and functions.

Local government officials play a crucial role in the future of your range. In the end, they are going to have the final say in whether you can build it or not, so establish rapport as early as possible. Talk to the county commissioner and the city council to figure out exactly what you need to do to get your shooting range approved. This may include figuring out zoning issues, environmental regulations, and local statutes involving noise and firearms. Your local officials will have the most accurate information on regulations affecting you and will appreciate being informed of your intentions early and often.

Unfortunately, not everyone is going to like the idea of a shooting range moving into the neighborhood. Their main concerns will probably be noise, lead contamination, and gun safety. This is where your public relations comes in. Talk to your neighbors and find out what their specific concerns are, if any. Then create a message to let people know exactly what you’re doing, what safety precautions you’re taking, and how the range is going to benefit the community. This can be done through public service announcements, town hall meetings, fliers, press releases, or even going door to door. No matter how you do it, make sure the people around you are adequately informed because problems will inevitably arise if you keep them in the dark.

3) Plan for Success

Obviously, no one builds a shooting range anticipating to fail, but too often people build ranges without planning to be successful either. When designing your range, leave room for future growth. You don’t want to find yourself limited when things go better than expected. You can prepare for this with careful planning and a little foresight.

Shooting ranges can get crowded when demand exceeds supply. Make sure you have enough lanes so people don’t have to wait for hours to shoot. Consider your customers when deciding how many and what kind of lanes to install. Go back to the question of whether your customers are more concerned with hunting or self defense. Perhaps a hunter shooting a rifle will occupy a lane longer than someone practicing self-defense with a handgun. If you expect or even allow rifle shooters on your range, consider building a separate area designed specifically for rifles. By separating shooters based on firearm type or purpose, you may be able to alleviate some congestion. Other suggestions for keeping the flow of customers unimpeded are to allow online scheduling of lanes, to install a webcam that allows customers to go to your website and see in real time how busy the shooting range is, and to limit how long shooters can occupy a lane.

Angel View of the Total Containment TrapThe equipment you install in your shooting range can also have a significant effect on your future success. If you anticipate a large number of shooters on your range every day, you may want to reconsider the bullet containment system you use. Rubber berms work great on ranges that don’t see excessive everyday use, but if you start having more customers than you originally planned for, it quickly becomes a less ideal solution. Rubber berms have to be cleaned and the bullets lodged in them mined after so many shots fired. Not only does it cost money to clean the rubber berm, but the more days you have to close your range for maintenance, the more money you lose.

The Action Target Total Containment Trap (TCT) can be a great solution if you are going to run a lot of people through the range. With three different types of hands-free lead removal systems, the TCT allows for varying levels of use and greatly diminishes the time you have to spend maintaining your shooting range. If your range’s anticipated level of use is on the border of being too much for a rubber berm, plan on being successful and install a TCT. Don’t limit your long-term success based on short-term finances.

No matter where you are in the process of building your dream shooting range, we are here to support you. We are only successful when you’re successful; so let us know what we can do to help. For more information on what systems will work best for you and your customers, contact one of Action Target’s shooting range consultants by calling our office at (801) 377-8033.

Which System is Better for the Total Containment Trap: Conveyor or Bucket?

The goal of every range should be to increase facility revenue. In order to achieve this goal, all range products and features should be carefully evaluated to ensure they maximize revenue and are aligned with the volume of range use. While the bucket system is the ideal solution for some ranges, Action Target recommends that all facilities with a Total Containment Trap engaged at a rate of 70% or greater should use the conveyor system. In these ranges, the conveyor system is the best solution to increase range revenue.

Action Target Total Containment Trap with CanistersTime is money. The more time the range is shut down for service, the less money the range is making. In other words, each time a range has to shut down should be viewed as a potential loss of revenue. A range using a conveyor belt doesn’t have to shut down in order to service the trap because the conveyor is constantly collecting the fired rounds. When the range does shuts down for general maintenance, the workers don’t have to deal with clearing buckets and can better spend their time elsewhere.

It’s important to remember that labor is not free. Using buckets or canisters is seldom a viable solution because of the high amount of manual labor that is required, which greatly increases the cost of a bucket system beyond initial construction. Each of the canisters underneath the trap, when full, can weigh over 100 pounds. Due to the heaviness and awkwardness of these canisters, lead is often spilled and the canisters often become damaged. Workers then have to spend more time cleaning up the spilled contents. On a standard 10-lane range, there are more than 30 canisters to remove. If each of these canisters weighs about 100 pounds, there will be more than 1.5 tons of lead. By design, the canisters are meant to have a lid hammered on before removal. However too often, range operators choose to dump each of these buckets into a larger barrel or bin for removal. This creates an undue risk and safety issue as well as the potential threat of lead spillage, which again, requires additional cleanup and special handling. In short, while a bucket or canister system is less expensive initially, the cost of labor and upkeep quickly piles up.

Contrarily, a screw conveyor removes the spent rounds and lead to a single location to be removed. The movement of the lead and spent bullets in the screw conveyor is hands-free; the only engagement is removing and replacing the large barrel after it is full. This can be done easily with a small forklift or a pallet jack and requires far less time and effort than that required with a bucket system.

A final reason why the conveyor system is recommended in Total Containment Traps is safety. If a canister is allowed to overfill, the rounds will remain in the bullet trap and can potentially cause ricochet and/or clogging. Barrels can become filled with lead in as little as two weeks. The more the lead piles up, the bigger the safety issue. Range safety is critical and the screw conveyor system is the best choice for optimal safety.

To learn more about Actions Target’s Total Containment Trap, its bucket system, or its conveyor belt system, visit the Bullet Traps page.

What is the Best Bullet Trap for my Range?

Choosing a bullet trap is an important decision that will directly impact a range’s profits. However, it is a decision that often seems overwhelming given the number of options available. To truly understand how important a bullet trap is to range operations and budget, it is helpful to think of the range as a large lead processor and to answer the following eight questions:

  1. Will the range be limited to handguns only, or will rifles be allowed?
  2. What other kinds of ammunition will be used?
  3. How many rounds will be fired each month? Each year?
  4. How do you plan to collect the lead from the trap?
  5. What about lead dust and other airborne particles?
  6. What kind of budget are you working with?
  7. Are there any size limitations?
  8. What about local fire codes and other restrictions?

Once these questions are answered, it becomes much easier to choose the optimal bullet trap that aligns with the range’s goals. Luckily for range owners, Action Target provides different bullet trap choices that cater to the many possible range uses. The two most common options for commercial range use are the Total Containment Trap (TCT) and the Rubber Berm Trap (RBT). Each has obvious benefits for any range, but the difference still depends on the use of each range and the answers to the above questions.

For example, if the range’s business plan calls for a small, low-use facility, then the Rubber Berm Trap is a great option. The RBT requires a smaller footprint than the Total Containment Trap and uses a smaller amount of floor space. It takes advantage of a hassle-free design that requires very little upkeep. It utilizes the practical and beneficial properties of rubber, while eliminating weaknesses and unnecessary elements of other designs. The RBT can also be serviced from the front, whereas the TCT must be serviced from the rear. The bottom line—The Rubber Berm Trap is cheaper to build and easier to maintain.

However, if the range has a high-volume, heavy-use facility, then the Rubber Berm Trap will quickly become a frustration and a large expense. In these types of ranges, the Total Containment Trap is the optimal choice.

AT Bullet Traps Used IndoorThe Total Containment Trap is the dominant industry standard for modern, heavy-duty, steel bullet traps. It is the superior choice for ranges where safety, reliability, simple maintenance, and ease of use are top priorities. The TCT can be used both indoors and outdoors in all types of law enforcement, military, and commercial shooting ranges. The TCT funnels fired rounds into a deceleration chamber, which increases safety for everyone on the range. Action Target’s patented Dust Collection Unit can be installed in the Total Containment Trap, protecting the range from lead dust contamination. The bottom line: Although more expensive than the Rubber Berm Trap, the Total Containment Trap is longer lasting and better for high-use ranges.

Before deciding on a trap, it is imperative to understand exactly what the requirements are to find the trap that supports the range goals. In today’s industry, too many owners are initially enticed by a low price only to be disappointed in the end due to the amount of unforeseen problems. For more information, Action Target has provided multiple whitepapers and a video to help choose the optimal bullet trap—visit the “Related Pages” section of our Bullet Traps page to access these resources.

Action Target Renovates Ohio Indoor Range

Action Target first worked with Ohio State Highway Patrol back in 1999 when we installed our “state of the art” Total Containment Trap. When it was determined the Highway Patrol would renovate the rest of their existing facility in 2011, we were contacted directly by the architect for specifications on the new equipment that would be provided. Because of the quality, performance, and robust nature of our Total Containment Trap, it was the only piece of equipment not removed and replaced in the 2011 renovation. Due to the heavy use of the range, the project was to be completed on an extremely tight time-line with only six weeks of manufacturing time. Action Target acted as a sub-contractor to Williamson Builders Inc. and together completed the tremendous facility in the time required.

This 24 lane, 25 yard indoor range now provides officers a variety of training options, including timed training qualification courses and decision making drills. In addition, the total containment trap system, and tactical baffle layout allow for dynamic cross lane firing and moving and shooting drills, accomplished under the watchful eye of the RSO through our clear ballistic glass stalls. Such dependability, quality, and versatility are completely unique to Action Target’s design. We thank Ohio State Highway Patrol for their continued business and support!

Action Target Completes Build for Jay Henges Range in MO

In 1937, the Missouri Constitutional Amendment created the Missouri Department of Conservation (MDC) to “restore, conserve, and regulate Missouri’s over-stressed fisheries, forests, and wildlife populations.” The MDC administers more than 975,000 acres and maintains five staffed shooting ranges, along with more than 70 unstaffed ranges. These ranges experience tremendous use from Missouri locals, many who are active sportsmen and hunters.

One of the most visited of these staffed ranges is the Jay Henges range in High Ridge, MO, located outside St. Louis. Range Supervisor Jake Hindman estimates that the range, which opened in 1994, receives 20,000 shooters each year. This continual high volume of fire led to maintenance and containment concerns regarding the inevitable lead remediation on the dirt berms. These concerns caused the Department of Conservation to decide it was time to invest in a “Total Containment Range” to eliminate costly lead clean up and maintenance while ensuring that no fired bullets left the shooing range.

The solution was Action Target’s Total Containment Trap (TCT) – Version 4. Some features of the TCT include:

  • Complete access into deceleration chamber
  • Modular chamber plates which require no cutting or welding – all parts bolt together.
  • All rounds fired are captured and guided into the deceleration chamber to expend their remaining energy as they harmlessly drop into a sealed collection system for recycling.

The Jay Henges Total Containment Trap measures 160 ft. wide with 20 shooting positions designed for heavy rifle use from the 100 yard firing line. The trap also features a unique self-supported engineered boom system that integrates into the frame of the bullet trap chambers, creating a support to the upper bullet trap plates without the need for a stand-alone truss system.

In late 2010, the Jay Henges range reopened, showcasing their new look with full concrete walkways, target holders, a bullet trap, and overhead baffles. Action Target would like to congratulate MDC on completing 75 years of public service and for their example in leading the way towards safe outdoor education by providing top notch facilities for citizens throughout the State of Missouri. Many thanks also to Action Target Midwest Range Consultant Chris Hart and Project Manager Brian Sanders for a seamless transition to the new bullet trap.

To read more about the Jay Henges Shooting Range visit http://mdc.mo.gov/regions/st-louis/jay-henges-shooting-range.

Range Project Spotlight: New Range In Pinellas County, Florida

The Pinellas County Sheriff’s Office will soon train in their new state-of-the-art outdoor baffled firing range. This new range includes Action Target’s high quality outdoor Total Containment Trap with a Screw Conveyor collection method. Both innovative systems make recycling much easier by catching all fired bullets in one 55 gallon barrel.

The new outdoor baffled firing range has a variety of tactical target systems, creating a multitude of training scenarios and environments that increase the range’s ability to do more than simply “qualifying” police officers.

Both ranges at the Pinellas County Sherriff’s Office include the follow training equipment and scenarios:

  • Running Targets—Essential for training since real-life threats do not stand still
  • Turning Targets—Used to create training environments promoting quick decision-making on how and when to take the shot
  • Multiple Threats—Programming “multiple adversaries” into gun fights and combat courses enhances training beyond single threat scenarios

Each training technique and target system is controlled by SmartRange—a computer software system that allows replication of “real world” scenarios. When engaging in a gun fight, officers experience several physiological changes to their bodies. Training in these realistic scenarios replicates this type of stress to help the officers learn how to handle it in a way that is safe and successful. When the moment does arise to put their training into action, they will have already learned how to more effectively manage their stress during action.

The range design includes input from Lt. Pupke (Pinellas County Sheriff), Lt. Littlejohn, Sgt. Chaisson, and Action Target. Everyone involved is pleased with the results of this fine training center. Action Target hopes to hold a training seminar at the range this coming spring, inviting local agencies to come and enjoy some great training on some great equipment.

We are proud of the foresight and planning done by Pinellas County, their leadership, their officers, and the citizens they serve. Thanks to the efforts of this agency, the Pinellas County Sheriff’s Office is now ready for anything the future holds for their department, putting the Action Target motto into action: “Better Equipped, Better Prepared.”

Range Project Spotlight: Winston-Salem, NC

Designing and building ranges for many years with Action Target, Mike Stilwell has been actively involved in countless shooting range projects, including his own successful 16 lane commercial range, Rangemasters of Utah. Having 13 years experience of owning and operating an Action Target range is what made Stilwell an excellent person to help design and build a range for the Winston-Salem Police Department (WSPD).

When Stilwell first became associated with the WSPD, they presented him with hand-drawn sketches, lots of notes, and passion to build a world-class indoor training facility. WSPD required more than the typical 25 yard police range. They wanted to build one of the longest indoor ranges found in their geographic region.

Stilwell first met the team from WSPD four years prior to this range build. He met Sgt. Bricker and Sgt. Hinson at Action Target’s Range Development Seminar held each year at Camp Butner, NC. Due to the lengthy process of getting their range started, Sgt’s Bricker and Hinson were no longer on the police force when the range was completed; however, the personnel change did not stop the project from moving forward. Stilwell is currently finishing the ranges with Sgt. Nelson and Lt. Watson to make the dream of building a world class training facility a reality.

The Winston Salem Training Academy is an indoor shooting range project currently being installed. It has two ranges, with one being 50 yards and the other 100 yards in length. There are tactical ranges with multiple Total Containment Traps–Version 4 (TCT4) bullet traps, with an open mouth throat for cross lane and tactical shooting. The TCT4’s have a screw conveyor lead collection system, inverted dual track runners, and 180 degree turning D-TaPS Target Systems. Both ranges are rifle rated and have 3/8” AR500 steel in the trap and on the baffles. The walls and ceilings are treated with PEPP acoustical material to ensure generous sound dampening, creating a comfortable area to practice shooting. The Winston Salem Training Academy is designed by the world-class A&E firm of Clark Nexsen with Dan Walker and Bobby Cummings taking an active role. The GC awarded the project was Branch & Associates from Roanoke, VA with Jerry DeVault as the Project Manager (PM). Clark Nexsen and Branch also designed and built the ranges at the Virginia Military Institute (VMI), which ATI was fortunate to be a part of.

Action Target and Stilwell consider it an honor to be a vital part of this world-class facility and to work with all of the individuals who made this project happen. Special thanks goes out to the Firearm Instructors of Winston Salem, both past and present, Bryan Dahlberg—Project Manager for Action Target—and Jerry DeVault—Project Manager for Branch & Associates—for their long, tireless hours.

If you’re ever near the WSPD, give them a call to set up a date and time to take a tour of their new facility. If you are considering an indoor or outdoor range project and are in the Mid-Atlantic States region, contact Mike Stilwell at mikes@actiontarget.com

Other recently completed projects include:

  • South East Territory – Browns Ferry Police Department
  • South West Territory – Orem Police Department
  • South Central Territory – Midwest Police Department
  • North Central Territory – Green Bay Police Department
  • North East Territory – Montgomery Police Department
  • North West Territory – Three Sites
  • East Central Territory – Shooters Edge, LLC

Range Project Spotlight: Junction City, KS Commercial Range

Action Target is widely known for constructing the toughest and most challenging shooting range projects in the world. Working together as a team allows us to overcome various obstacles we face as we design, build, and create ranges for our clients. For example, Action Target was approached by the Federal Reserve Bank to design and build a shooting range on the 17th floor of a major office building in Chicago, Illinois. When considering the noise, ventilation, and other items associated with a range, constructing a range in a skyscraper surrounded by offices was a challenge, but not an impossible task for Action Target. Through careful planning and execution, we created a .50 BMG rated shooting range complete with three lanes, stalls, and retrievers.

Action Target Builds New Commerical Range in Junction City, KSAction Target’s challenging builds don’t end there. When Chris Hart, Action Target Range Consultant of the South Central Territory, was approached with an equally challenging range project, he welcomed the opportunity by stating, “It’s not every day that you install a modern shooting range in a building from the 1800’s.”

Every commercial shooting range project requires two key elements to get it off the ground- passion and hard work. When it comes to Godfrey’s Indoor Range, Todd Godfrey had plenty of both in reserve when he embarked on this project. Todd, an officer with the Junction City Police Department, envisioned opening a commercial indoor shooting range to serve not only the citizens of Junction City and his fellow police officers, but also the soldiers stationed at neighboring Fort Riley.

In 2008, Todd toured Kansas City PD’s 30 lane tactical indoor range with ATI Midwest Range Consultant Chris Hart and Bill Provencher from Carey’s Heating and Air Conditioning, as the two companies worked together to build this range several years earlier. After viewing the range, Todd decided that Action Target was the partner to have. With a visitor’s pass from Action Target, Todd attended this year’s SHOT Show where he secured everything he needed to run his range business, from firearm distributors to inventory software (we are also happy to help all of our future range clients attend the SHOT Show with us).

Junction City, KS Commercial Range Build by ATIFor this commercial range, Todd secured some prime real estate in downtown Junction City–three vacant buildings totaling 20,000 sq-ft. on a main thoroughfare. However, this perfect location came with one catch–the building dates from the 1800’s. Building a range in a building this old would be challenging, but not impossible, for Action Target. Using ATI’s detailed range drawings, Todd began building out the structure to accept the modern range equipment. His company (yes, Todd has three jobs!), Godfrey Construction and Renovation, LLC, installed new ceiling trusses and concrete work. He also remodeled the building with a new store front that includes a luxurious lounge area for those waiting to shoot.

To accommodate the expected high volume of shooters, Todd chose Action Target’s Total Containment Trap with Dust Collection Unit, Rifle Rated Ceiling Baffles, Digital Smart Target Retrievers with SmartRange Master Control System and Level III clear Ballistic Glass Shooting Stalls. To enhance the realistic training environment, he connected the SmartRange system to his P/A system so he can broadcast sound effects such as gunfire, screaming, and sirens. The range also has police light bars to simulate felony vehicle stops. Carey’s provided a fully automated range ventilation system guaranteed to meet all OSHA and EPA regulations.

Junction City, KS Commercial Range Built by Action TargetGodfrey’s Indoor Range opened to the public on July 31, 2010 and was named Junction City’s 2010 Business of the Year within five months of opening. However, that wasn’t enough for Todd–he then got creative with his extra space and installed a state of the art 6,000 sq-ft. 3D archery range. To further service his range customers, Todd leases 4,000 sq-ft. of retail space to Quantico Tactical.

If you’re ever near exit 296 on I-70 west of Kansas City, do yourself a favor and stop by to meet Todd and his great staff and send a few rounds downrange while you’re there. Todd is currently available for consulting on range franchise opportunities and the construction of range facilities.

www.godfreysranges.com
Godfrey’s Shooting and Indoor Archery Ranges Facebook Page

Other recently completed projects include:

  • Smith & Wesson Range – Houlton, ME
  • Watts Bar Nuclear Range – TN
  • Triad Gun Source Range – NC
  • Denton County Sheriff’s Department Range – TX
  • Atlanta State Penitentiary Range – GA

Action Target Completes SharpShooters Commerical Range Project

Commercial indoor firing range developments are a vital addition to any community. They not only provide a safe and accessible shooting location for private citizens, they also provide a firearms training facility for local law enforcement agencies. Action Target Range Consultant Robb Anderson recently completed the SharpShooters USA commercial shooting range project that demonstrated Action Target’s desire to provide shooters of all skills levels with an enjoyable and safe training facility.

The Sharpshooters range project began two years ago and, with the help of Tom Deets, Ken Burson and Action Target, became the most efficient, innovative and modern indoor shooting range in the Atlanta market.

Some of the features of the SharpShooters Range Project include:

  • Three separate bays with eight lanes in each bay
  • Bay #1 is a “Fixed Firing” range consisting of two 50 Cal lanes and six lanes designed for 223 and 308 rifle use
  • Bay #2 is a “Fixed Firing” range consisting of eight lanes designed for 223 and 308 rifle use
  • Both Bay #1 and Bay #2 are installed for ADA handicapped shooters
  • Bay #3 has a hybrid range design for public and Tactical Training for local law enforcement community
  • All three bays include the Mancom Instructor Stalls and are equipped with Mancom “Touch-n-Go” Target Retrievers
  • All rear and side walls are covered with PEPP acoustical tiles by Acoustical Services.

AT Installs Total Containment at Sharpshooters Range

Action Target installed both the Total Containment Steel Bullet Trap and Containment Baffles for each firing range.

AT Installs Mancom Instructor Stalls

All three bays include the Mancom Instructor Stalls and are equipped with Mancom “Touch-n-Go” Target Retrievers.

The SharpShooters Range has quickly become a popular favorite among Atlanta’s shooters and law enforcement. Recently, 20 agencies participated in a two day seminar – Modern Firearms Training – that allowed attendees the opportunity to give back to the communities that supported this range.

In a testimonial, a member of SharpShooters USA wrote:

“Since the doors were opened to the public, your staff has made it their policy to ensure everyone feels welcome. It is obvious they intend to make the experience comfortable and enjoyable to all comers. Yesterday I had the privilege to witness a situation that took that attitude to a unique level.

In the lane next to mine were a father and son. The son appeared to be in his early teens. It was obvious they were a bit new at this and enjoying a genuine “father-son” afternoon together. Each took turns with a pistol and one could sense they found the experience both new and exhilarating. I noticed a short lull in their shooting and soon realized it was because they were changing weapons. They had an AR.

Moving away from my lane to dispose of a spent target, I saw Range Safety Officer Shaun Kennedy stepping forward to ensure all was about to go well. As I approached the trash can, the father and I exchanged a nod and I asked if that was his rifle. “No, it is a rental. We are visiting from Canada and don’t have access to anything like it there. This may be the only chance my son will ever have to shoot one.” As the dad and I stood back closer to the wall, Shaun continued a brief explanation to the son of the mechanics and safety issues of the weapon. From the gentle manner with which he talked to the young man you could see his intent was to ensure the son was comfortable, safe, and confident enough to enjoy what he was about to experience. The youngster thoroughly enjoyed what followed while a very proud father watched. The look passed between them after the last round was fired was priceless. They asked if they could have a spent casing. Shaun retrieved one with a broom.

For all the right reasons, nothing happened that you should be aware of. Nothing went wrong. An alert Safety Officer made certain of that.

For all the right reasons, something happened that you should be aware of. An alert Safety Officer made certain two novice shooters, a father and son, went home with a newfound sense of shared pride from what they accomplished and an afternoon of great memories.

Kudos to your staff.”

Congratulations to all the SharpShooters USA Staff and Robb Anderson for a job well done!!!

Other Recently Completed Projects:

  • Belmont Firearms & Range, NH (Matt Brinkerhoff)
  • Federal Reserve Bank, Memphis, TN (Jason Snell)
  • Duke Nuclear Energy Plant, NC (Mike Stillwell)
  • Houston Police Department, TX (Aaron Ludwig)
  • Ankeny Police Department, IA (Chris Hart)

If you are interested in our products and are in the south-eastern states, contact your Regional Representative Robb Anderson. For all other areas, please visit our Contacts Page to find the territory manager for your area.

Contact Info for AT Robb Anderson

ROBB ANDERSON
801-377-8033 ext. 124
801-319-0977 cell
robba@actiontarget.com

Free Webinar – Choosing the Optimal Bullet Trap: The Total Containment Trap

Choosing a bullet trap is one of the most important aspects of designing and building a shooting range – an area you simply cannot afford to cut corners in. Unfortunately, it can quickly become overwhelming to determine the best, safest, most reliable, and most economical solution to fill your range’s needs. Luckily, Action Target is hosting a free 30-minute webinar entitled “Choosing the Optimal Bullet Trap: The Total Containment Trap” to help you understand what to consider when making a decision and why the Total Containment Trap is the most advanced, most effective, and safest bullet collection and disposal system available.

About the Webinar

During the course of the presentation, Addison Sovine, co-founder of Action Target, Inc. will:

  • Give critical information and tips for those considering a new bullet trap
  • Answer common concerns regarding bullet traps
  • Outline what to consider when building a new bullet trap or modifying their existing trap
  • Present an overview of the Action Target Total Containment Trap
  • Explain why Action Target is an invaluable partner in shooting range planning and construction

Event and Registration Details

When: Thursday, May 12, 2011
Time: 11:00-11:30 A.M. (MST)
Where: Online
Cost: FREE
Registration Link: https://www3.gotomeeting.com/register/464282150

Whether you are actively looking for a new bullet trap solution, or simply curious about what goes into making the bullet trap construction process a success, you can’t afford to miss this informative and entertaining webinar. →Register Now

Five New Action Target Products Revealed at Shot Show 2011

Action Target was recently represented at Shot Show 2011 at the Sands Expo & Convention Center in Las Vegas, NV from Jan 18-21. The overall scope and size of our booth represented the overall growth success of our company for the last 25 years. The amount of traffic generated this year was astounding. We hardly had a minute to catch our breath and we are grateful for it.

Many of the attendees were drawn in by the impressive design of our booth. It stood 20 feet tall and 60 feet wide, contained two meeting rooms, impressive graphics with accurate reductions of a Modular Armored Tactical Combat House (MATCH) and Total Containment Trap (TCT).

Here is a photo shot of our both taken about an hour before the show opened on the last day:

Action Target Sales and Marketing Teams

We rolled out many new targets, systems and concepts during Shot Show 2011. Some included:

  • Reactive Target System (RTS)These self-healing targets are best fit for close quarter live fire engagements. We wanted to create a viable solution to meet the significant demand we have received from organizations and agencies all around the world. Some of the benefits of the RTS are the ability for the target to fall when struck, count the hits a target takes in a cost effective manner and you will not need to manually count the holes anymore during qualifications. Major benefits of the RTS include the ability of the target to fall when struck and the ability to count the number of hits to a target in a cost effective manner rather than manually counting the holes after qualification rounds. We devoted an entire article to this innovative product line last week.
  • Real Terrain Range (RTR) – Chuck Habermehl helped to develop the concept of the Real Terrain Range to bring a complete realism to training scenarios. At Action Target, we scoured the globe looking any current option narrowing our focus to a company that has been designing Hollywood movie sets for years. Their unique approach and materials allow pullets to pass through a simulate such as a rock, tree or wall causing no ricochet, splatter, inhalation or visibility hazard if any negligent discharge occurs. The RTR design allows Action Target to recreate any training environment you need.
  • FlexTact by Hufcor – FlexTact is the quickest and easiest reconfigurable shoothouse on the market today. As the exclusive worldwide distributor of FlexTact, Action Target was fortunate to have this small example of the system in the booth along with Hufcor’s training staff. The FlexTact increases the quality of your training and throughput and can benefit law enforcement, military and fire departments. The panels are suspended by an overhead railing system which allows you to recreate any building layout in minutes. There are panels are designed with doors, windows and graphics to truly enhance the realism. This is a great compliment to Action Target’s MATCH.
  • Pelvic Torso – The Pelvic Girdle was one of two new steel target prototypes brought to the show. It received a great response, and gave us the opportunity gather feedback that we will put to good use as we continue working on this target as a training solution. This prototype can be added onto an existing Action Target Hostage , IPSC Torso or Full-Size IPSC Torso target. It easily bolts onto the stand, has no welds and replicates the pelvic girdle.  There are two swinging plates that will react when hit. With many agencies training on disabling drills, the Pelvic Torso is the only steel target on the market that addresses this training need. Look out for an article on this product next week.
  • Sport Rack – As a world leader, Action Target has been asked time and again for a portable plate rack. Our existing Plate Rack has the highest quality and design that organizations all around the world over have used with much success. It is however, difficult to carry for long distance shooting which is why we were excited to announce our new Sport Rack. It looks just like a miniature version of our larger model, but it does not have true plate rack properties. The Sport Rack has four inverted round target heads, with no welds, so that when struck they swing upward, similar to the target movement on our horizontal dueling trees . Once again, there was a great deal of interest in this prototype, and look out for a full article about it in two weeks.

If you are interested in the Sport Rack or Pelvic Girdle and would like to add your name on our waiting list to be notified when they are for sale, email chadb@actarg.com. If you have questions or are interested in speaking to one of our Range Consultants, please Contact Us.
