Illinois Shooting Range Braces for New Concealed Carry Law with Huge Upgrade

As Illinois becomes the 50th state to allow the concealed carry of firearms, one shooting range a half hour out of Chicago is preparing for the influx of new shooters and turning heads in the process.

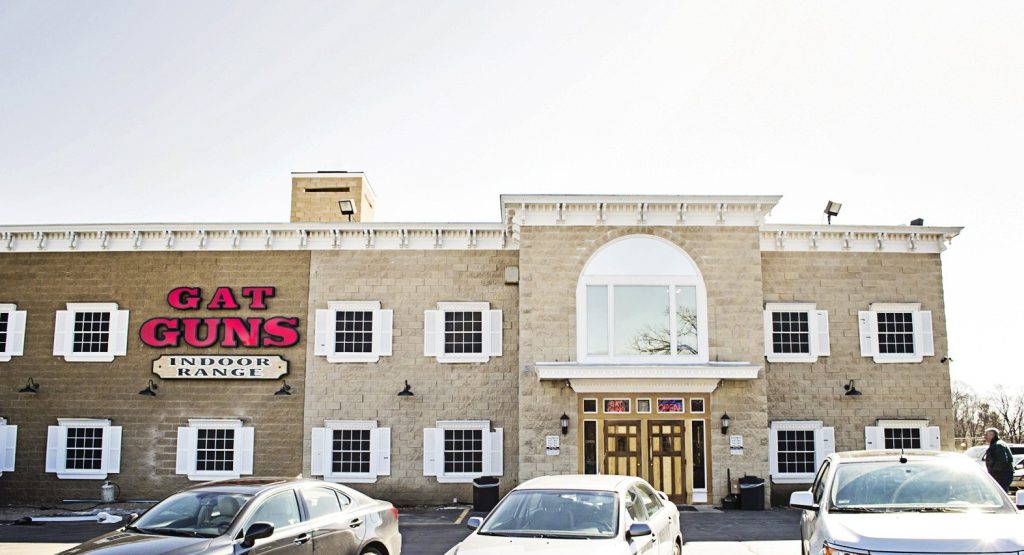

GAT Guns of East Dundee, Ill., recently added a monumental 39 new indoor lanes to its existing 24 making it one of the largest indoor shooting ranges in the country and the go-to destination for shooters near and far.GAT Guns 3

The new ranges, which were designed and installed by Action Target, include 50-yard and 75-yard bays with 14 lanes each as well as a 50-foot long tactical training range with 11 lanes. There is also a large classroom to accommodate the thousands of concealed carry permit applicants expected to come through the doors when the new law goes into effect on January 5.

“We foresaw a need for a full service training facility in the area,” GAT Guns General Manager Randy Potter said. “There’s nobody else around here that can take care of customers from A to Z as completely as we can. We have the training classes, the firearms inventory, the accessories, and now we have one of the most advanced firearms training facilities in the country.”

With the new Illinois concealed carry law requiring 16 hours of training (including live fire training on a shooting range), GAT Guns provides the ideal venue.

GAT Guns 4

The new shooting bays include steel funnel bullet traps which safely collect and contain lead debris, bullet proof shooting stalls, an advanced air filtration system and Mancom target retrievers that allow for complete control over target distance, lighting effects and 360 degree random edging from an LCD control screen in every booth.

“Customers are blown away by the quality of the ranges,” Potter said. “The technology on our ranges allows shooters to control every aspect of their training. It’s an entirely new shooting experience.”

GAT Guns, which was founded in 1979, is already known as the Illinois headquarters of all things firearms with more than 6,000 guns in stock on any given day and 2,500 unique pieces on display.

“We consistently have folks from 150 miles south of here to the Wisconsin border and even as far west as the Mississippi River,” Potter said. “I attribute that to us being as unique as we are in size and scope as well as our commitment to professional customer service.”

GAT Guns 2

GAT Guns originally began in nearby Hanover Park and moved to the current location in 1989 where owner Greg A. Tropino (and thus the acronym “GAT”) bought an old restaurant and retrofitted it into the two-story gun supercenter it is today.

“Greg’s told me in the past that when he originally bought the building, he had no idea what he was going to put upstairs in the original footprint,” Potter said. “We’ve outgrown that by 10 times now.”

With 63 total lanes and shooting bays located on both floors, GAT Guns has quickly become one of the most talked about ranges in the country. It’s even attracted the attention of R. Lee “The Gunny” Ermey from Glock who spent a day there in May to promote the range and sign autographs.

“We had over 1,200 people wait to meet The Gunny that day he was here. It was a very fun event,” Potter said.

GAT Guns 1

Even more than entertainment and retail, however, the mission of GAT Guns is to provide a central location for firearms education and quality training.

Training courses provided at the range currently include NRA First Steps, women only classes taught by women instructors, five phases of tactical pistol, five phases of tactical carbine, introductory handgun, practical holster and soon, Illinois concealed carry classes.

The new shooting bays recently opened up to the public and are also available for law enforcement qualification as well.

Action Target Increases H&H Shooting Sports’ Lane Count

shootingbay6

PROVO, Utah – Aug. 15, 2013 – H&H Shooting Sports of Oklahoma City recently teamed up with Action Target, the world leader in shooting range development, equipment and services, to increase their shooting lane count from 55 to 61 making them one of the largest gun range and retail firearm stores in the nation.

Action Target’s six-lane addition to the H&H Shooting Sports Complex brings them to a total of 82,500 square feet and is the physical embodiment of their goal to grow the shooting sports. The 61 current lanes are not the typical shooting range variety, either. They have specific uses assigned to them from pistols to shotguns, archery, air guns and even black powder rifles.

“It wasn’t good enough to just do handguns, guests wanted to be able to shoot rifles, shotguns, black powder guns and bows too,” H&H founder Miles Hall said. “We really listen. Guests told us what they wanted and we kept adding lanes to meet those needs.”

For their guests (a term they use they use exclusively instead of customer), H&H is the mecca of the shooting sports world, a destination that attracted nearly 750,000 visitors in 2012 alone. H&H has also influenced the business side of the industry by becoming the model upon which many new ranges and stores are based.

“This complex shows the world that the gun industry still has validity, not just in Oklahoma, but everywhere,” Hall said. “These complexes are the new face of the industry and it is awesome that some folks want to duplicate what we have here back in their home states.”

The HallsWhile H&H Shooting Sports now boasts one of the largest commercial shooting ranges in the nation, it came from very modest beginnings. When Hall and his wife founded H&H in 1981 at the young ages of 20 and 18, it had a mere 10 50-foot shooting lanes. And it wasn’t until 15 years later, in 1996, that a retail store was added—a decision that set H&H on the path to becoming a hub of the shooting sports.

H&H now features a store with more than 2,000 firearms, a restaurant, virtual simulators, an online newswire and even the occasional wedding. Hall said he wishes he could take credit for the range’s success but that it all comes down to customer service and the simple act of listening.

“If you listen to people and watch who they are and do what they want you to do, they’re going to take good care of you,” Hall said. “They’ve taken good care of us here.”

H&H (which stands for “Hers and His”) is especially conscientious of women shooters who now make up nearly half of its customer base.

“Shooting is not a men’s only club anymore,” Hall said. “47 percent of our customer base is women, and ethnically, it is all over the board. We love that our guests are as diverse as they are.”

Even with the evolving landscape of new guests, technology and products, H&H stays true to their educational goal which includes training and teaching shooters how to safely use firearms while keeping it fun.

“We understand the entertainment factor, but its really all about education,” Hall said. “No one has to participate in shooting sports. They do it because they want to, and we try very hard to make it a fun and enjoyable time for them.”

H&H has plans to add more shop space to accommodate a larger selection of gun safes that will increase their size to 90,000 square feet. Plans are also being made to add another six shooting lanes after retrofitting some of the older ones.

2363A4E5-A751-4890-B362-D2A2413EF533[5] The grand opening of the new shooting lanes will be held Labor Day Weekend during normal business hours.

Three Keys to Getting Your Shooting Range Approved

In the process of building a shooting range, perhaps the most intimidating part is getting it approved by your local government. Even after you’ve done all the work, raised all the money, and planned everything out, the final say still comes down to a handful of elected officials. Don’t let that make you feel powerless, though. Even if the ultimate decision is in someone else’s hands, there are still things you can do to increase your chances of success.

1) Talk to the Right People

Your local government officials need to know as soon as possible that you’re planning to build a shooting range. They’ll appreciate it if you inform them early and often of your intentions, and that communication can open doors for you later on. You’ll have a much better chance of getting your range approved if you’ve established a relationship with local leaders from the beginning.

Early communication will also help you figure out zoning issues. In most cases, land has to be zoned as either commercial or industrial for a shooting range to be built on it. Find out first thing if the land you’re looking at is zoned appropriately. Zoning requirements for building a shooting range vary depending on where you live, and some places may not even have specific guidelines for ranges. Your local officials will have the most accurate information and can help you understand the requirements. Should you discover that the land you plan to build on is not zoned appropriately for a shooting range, ask the planning and zoning committee if it can be re-zoned. Often, city governments are willing to work with local businesses on zoning issues to keep potential commerce from going elsewhere.

2) Educate Yourself

AT Builds Indoor Firing Range for OrlandoThe more you know about what’s required to get your range approved, the better. Become familiar with local noise and firearms regulations as well as environmental restrictions that will apply to your shooting range. How will you handle noise abatement? How will you dispose of lead? How will you keep customers and employees safe? All of these issues will come up when presenting to the city council. If you already know what their concerns are by asking questions and doing research, you can adequately prepare to answer them.

Once you know what standards you’re shooting range will be required to meet, talk to an Action Target territory manager to find out what options are available. Action Target specializes in building state-of-the-art shooting ranges and offers several technologies to meet the stringent requirements of government regulations. For example, Action Target’s Total Containment Trap (TCT) is the most environmentally-friendly bullet trap in the industry and makes lead containment safe and easy. With the addition of a Screw Conveyor System (SCS), all bullets and range debris are safely collected and deposited into a sealed barrel for convenient disposal. Action Target also provides sound-abating safety baffles, acoustically-rated wall systems that reduce reverberation by 98%, bullet-proof transparent lane dividers, and ventilation systems that filter air and protect customers from lead exposure. No matter what regulation your shooting range is under, chances are Action Target has a patented technology to meet it.

3) Prepare to Present

Once you’ve talked to your local government officials and learned everything you need to know about regulations and restrictions, all that’s left to do is present your plan to the city council. For those inexperienced in public speaking, this may be the scariest part of the whole process. To make the experience smoother, ask a city council member in advance what information they want from you, write down a list of questions they may ask you, and prepare all of your answers ahead of time so you don’t forget in the heat of the moment.

If you feel like you need additional backup, Action Target representatives are more than willing to attend the city council meeting with you no matter where you live. That way you can have a shooting range expert standing next to you to answer any questions about the technology and safety features of your future range.

The sales team at Action Target is willing to do whatever it can to make the approval process as seamless and successful as possible for you. If you have any questions or concerns about getting your shooting range approved, call Action Target at (801) 377-8033 and ask to speak with your area representative.

Please note, the tips included in this message have been found to be helpful for many clients throughout the years, but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.

This article was originally published in the Action Target Journal on June 14, 2012.

Myths About Wet Steel Traps

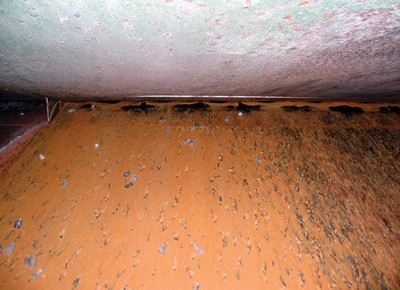

Wet Steel Trap 1As with anything else in life, the ability to make an informed decision is based on the quality of the information you receive. The purpose of this article is to explore some of the claims associated with using water on steel funnel traps.

This information represents the opinions of Action Target based on the experience and observations of our range consultants and engineers. We encourage you to conduct your own research and speak with other users about their experiences with the various bullet trap technologies presented before drawing your own conclusions.

CLAIM #1: You can use any type of ammunition on a wet steel trap.

It has been reported that frangible ammunition may cause problems with wet funnel traps because the powder created by certain types of disintegrating bullets can mix with the water and harden into a cement-like substance resulting in an extremely difficult cleaning process.

CLAIM #2: Wet steel traps eliminate lead dust on your range.

If a bullet strikes an area on a wet steel trap where the water and oil mixture is flowing (like on the bottom plates), the amount of lead dust generated at the trap on initial impact may be reduced. But if the bullet hits on the upper plates where no water is present, lead dust can be generated much the same as on a trap where no water system is in use. Also, lead dust containment systems such as water are meant to deal with lead on the bullet trap itself. They typically have little or nothing to do with emissions at the firing line or other areas of the range.

CLAIM #3: Wet steel traps capture all pullets whole and eliminate splatter and ricochet.Wet Steel Trap 7

The gently sloping angles of steel funnel plates do help prevent bullet breakup on initial impact, but bullets can also fragment into small pieces once they enter the rear chamber and strike more steel surfaces inside. Also, many designs include a vertical edge at every seam where two chambers meet and are attached to each other. Deflectors are typically used to protect these vertical edges, and bullets can fragment more significantly if they strike these deflectors. Our observations would indicate that the degree of bullet fragmentation is mostly related to the velocity of the bullet. Slower pistol rounds may be able to be captured more whole when using a primary decelerant or lubricant such as water, but faster rifle rounds tend to disintegrate whether the water is present or not.

CLAIM #4: Wet steel traps are more environmentally friendly.

A doctor’s first and fundamental responsibility is to do no harm and to not make a difficult situation worse than it already may be. The same can be said for a bullet trap. Because lead disposal is already difficult enough for most shooting ranges, the last thing we thing a bullet trap should do is to complicate the matter by mixing the lead with other substances such as water, oil, chlorine, or antifreeze.

CLAIM #5: Wet steel traps function equally well indoors and outdoors.Wet Steel Trap 9

Referring back to claim #4, it can be much more difficult to contain all potential contaminants generated by a wet steel trap on an outdoor range. Rain, snow, ice, wildlife, leaves, twigs, and other clogging debris can complicate matters when operating outdoors.

CLAIM #6: One piece welded funnel plates are better than modular funnel plates.

If everything is welded together on site, you can end up with a bullet trap that is much more difficult to service or repair should anything go wrong. Long, continuous sheets of plate steel can be more prone to stress fractures and cracking than shorter, modular plates. That is one reason why bridges and overpasses are often formed by bolting together multiple modular pieces. When modular funnel plates and joint systems are properly designed, you get a strong and maintenance-friendly bullet trap that requires no sacrifice of safety or performance.

CLAIM #7: Funnel plates mounted at a 12 or 13 degree angle function significantly better than funnel plates mounted at a 15 degree angle.Wet Steel Trap 6

If a 12 or 13 degree slope is better than a 15 degree slope, then isn’t 11 better than 12? Why not drop to 9 degrees? Or 7? Since every degree you go down can increase the cost and the front-to-back size of the trap, there is a point at which you can reach the point of diminishing returns. All other factors being equal (steel hardness, bullet trajectory, etc.), our high speed video tests do not reveal any significant difference between impacts at 12 or 15 degrees. Although it is possible to install an Action Target trap with plates mounted at either 12 or 13 degrees, we believe 15 degrees to be optimal for most uses.

CLAIM #8: A 30-inch diameter in the circular deceleration chamber is better than a 26-inch diameter.

Following the same logic, why not use a 40-inch diameter? Why not 50? Again, it is important to weigh multiple factors such as performance, cost, and space. Action Target believes that the most important thing about a chamber is that it effectively contain rounds, that it have a good service life, and that it can be easily serviced if and when the need arises. We believe our chamber design achieves these values in an optimal way.

CLAIM #9: Wet steel traps don’t require much maintenance.Wet Steel Trap 8

Regular maintenance should be expected with any bullet trap, regardless of the materials used. Just like anything else, range equipment must be properly cared for to keep it working.

The wet steel trap designs we have seen include a water pump, spray nozzle, and filter systems that should be regularly maintained. Potential debris like cardboard, paper, wood, and shotgun wads can certainly be a problem if they are introduced into these systems. Lead should be removed from the collection system and disposed of properly. And we recommend you account for any exposure the lead may have had to water, oil, chlorine, or antifreeze. Water sources should be maintained and you should deal with any potential sources of flooding or leaking. In some cases, an external settling pond or a drainage tank with a waste trap may be needed to keep contaminated water from entering the sewer system. Finally, you should consider any additional effect the potentially higher humidity may have on your ventilation system and any HEPA filters.



NOTE: None of the photos used in this article are of Action Target bullet traps.

Myths About Rubber Berm Traps: Part II

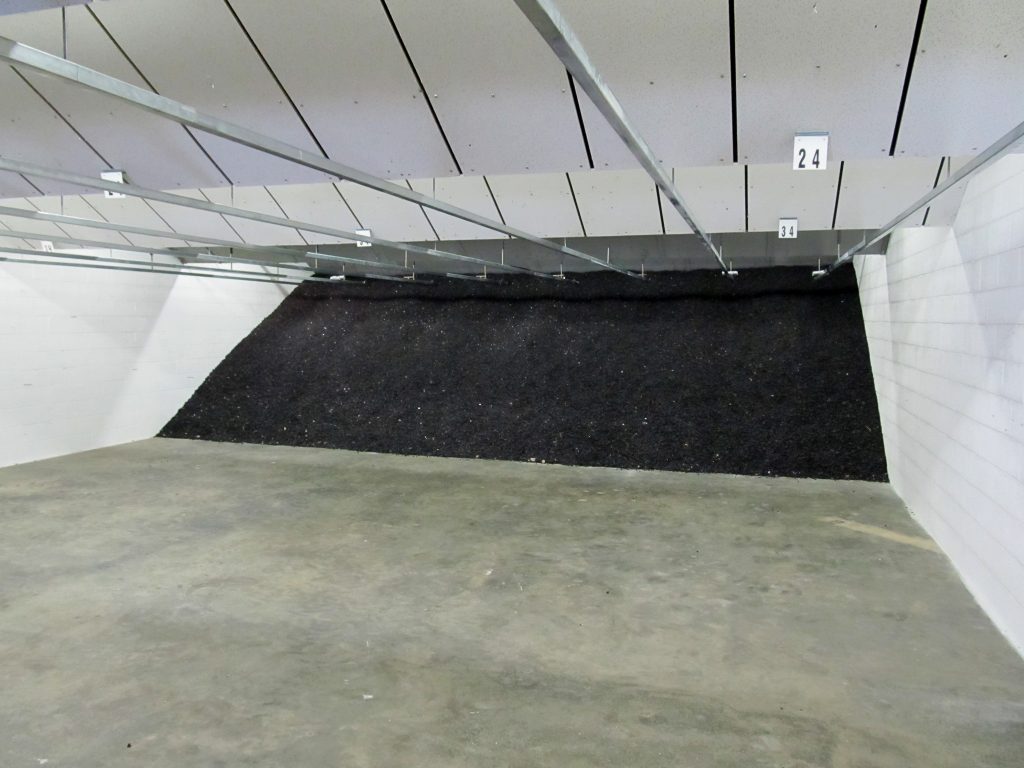

As we discussed in the first part of this article, rubber berms are a fantastic way to contain rounds on ranges that see limited use, but they aren’t perfect in every circumstance. Rubber berms have their limitations no matter what you may read. If you are considering installing a rubber berm on your indoor or outdoor range, make sure you have a clear understanding of the facts about what rubber berm are realistically capable of handling. Here are three more myths you may encounter in your research of rubber berm technology.

CLAIM #4: Rubber berm traps are easy to clean. You can even do it yourself with a special vacuum or with doors on the back of the trap.

When too many bullets are suspended in the trap for it to function safely, they should be mined from the rubber and disposed of properly. Some early claims stated that a million rounds per lane could be fired before cleaning was required, but our real-world experience and documented accounts reveal that a rubber berm trap should be cleaned after about 80,000 rounds per lane.

The process of separating the lead from the rubber can be a very specialized and time-consuming task. The top 8 to 12 inches of rubber are typically taken off the entire trap and then separated to remove the bullet fragments. The lead fragments can be classified as a recyclable material, but may require complicated permits to transport and dispose of legally. After the lead has been properly dealt with, the remaining rubber is placed back on the trap. Even with the best industrial equipment, it can take an experienced crew nearly seven full days to clean a 20 lane trap. Because of the extensive lead exposure inherent in the process, everyone involved should be outfitted with the proper safety equipment including complete hazardous-material suits and certified respirators.

Another claim states that bullets will travel all the way through the rubber to the rear of the trap where they can easily be removed through doors mounted in the back of the steel support structure. Our experience shows that handgun rounds typically penetrate only 6 to 10 inches into the usual 24 inches of rubber, and most rifle rounds only penetrate 12 to 16 inches. Even as newly fired bullets impact other bullets already in the rubber, we have not seen fragments even come close to the rear of the trap. We have never found these “cleaning” doors to do anything more than add unnecessary expense and difficulty to the trap.

CLAIM #5: Rubber berm traps greatly reduce the noise levels on your range.

Sound problems on shooting ranges are caused by the noise generate when firing a gun and the interaction of that noise with the walls, floors, and other surfaces of your range. When you compare the surface area of a bullet trap with that of the floor, walls, and ceiling of a typical range, the trap typically makes up only about 5% of the total surface area. This small percentage combined with the fact that rubber is only a fair sound absorbing material means a rubber berm trap may have minimal impact on the sound levels on your range. We have found that using proper sound absorbing materials and techniques on your walls and ceiling baffles can give far better results.

CLAIM #6: Adding more technology and additional devices to your trap will improve its performance.

There is only so much you can do to “technologically enhance” chopped rubber. That being said, let’s look at some of the most common add-ons to rubber berm traps.

The first device is a large collection bin or “hopper” that spans the top of the trap. In certain cases, the chopped rubber has been found to migrate and flow toward the bottom of the trap leaving undesirably thin coverage near the top. When this happens, the extra rubber that accumulates at the bottom of the trap should be periodically collected and returned to the hopper. This process can be very labor intensive, and you should employ the same safety equipment and procedures used when cleaning the trap.

Another add-on uses large sheets of rubber that act as a skin over the entire surface of the trap. This cover is designed to help keep the small rubber granules in place and to keep small bullet fragments from escaping back toward the shooter. As shots are fired into concentrated areas, the cover can quickly develop larger and larger holes, requiring time and money to maintain. Another downside to a cover like this can be heat retention. In hot conditions, the membrane may reduce the ability of the granules to “breathe” building up heat and increasing the chance of fire when other ignition events are present.

You have Options

The equipment you install in your shooting range can have a significant effect on your range’s future success. Rubber berms work great on ranges that don’t see excessive everyday use, but if you start having more customers than you originally planned for, it quickly becomes a less than ideal solution. After evaluating the benefits and limitations of a berm trap design, you may conclude that this technology is the best overall choice for your needs. If not, know you have other options.

The Action Target Total Containment Trap (TCT) can be a great solution if you are going to run a lot of people through your range. With three different types of hands-free lead removal systems, the TCT allows for varying levels of use and greatly diminishes the time you have to spend maintaining your shooting range. If your range’s anticipated level of use is on the border of being too much for a rubber berm, plan on being successful and install a TCT. Don’t limit your long-term success based on short-term finances.

Rely on the Experts for Help

There are hundreds of things to take into consideration when building a shooting range, but your top priority should always be safety. Before anything else, make sure your range is going to be safe for your customers, your employees, and the environment. If you are considering building a range, talk to the Action Target representative in your region and he will be happy to help you find the right equipment to fit your needs and budget. You can also use our Request a Quote form to get started on your range upgrades today.

Please note: the information included in this article has come from both documented studies and the personal experience of Action Target shooting range specialists. This information has been found to be helpful for many clients throughout the years but may not apply in all situations. Please use judgment in determining which tips will be helpful in your particular situation.
